The modern industrial landscape relies heavily on the durability and versatility of steel. As global trade and manufacturing capacities expand, the demand for robust industrial building steel structure solutions has reached an all-time high. Choosing the right framing system is the foundational decision for any warehouse, factory, or commercial complex, as it dictates the facility's clear span, load-bearing capacity, and overall cost-efficiency.
The four common types of steel building structures used in modern construction are steel building frames (multi-story or heavy industrial), steel portal frames for wide-span warehouses, steel trusses for specialized roof loading, and steel grids for complex architectural or long-span spatial requirements. Each industrial building steel structure offers distinct advantages in terms of material economy, assembly speed, and structural rigidity.
Understanding these systems is essential for procurement managers, structural engineers, and industrial developers. Each type of industrial building steel structure serves a specific niche, from the simple efficiency of a portal frame to the sophisticated engineering of a space grid. This comprehensive guide explores the technical specifications, application scenarios, and strategic benefits of these four primary steel configurations to help you optimize your next construction project.
Steel building frames
Steel portal frames
Steel trusses
Steel grids

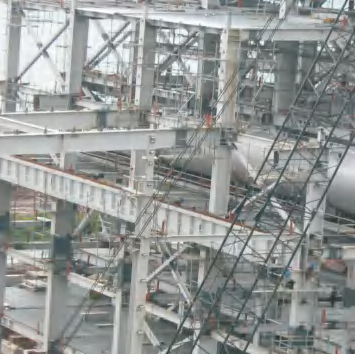

Steel building frames consist of a network of vertical columns and horizontal beams joined together to form a skeleton that supports the floors, roof, and walls of an industrial building steel structure. These frames are typically categorized into rigid frames, braced frames, or semi-rigid frames depending on how they resist lateral forces and distribute gravitational loads throughout the skyscraper or industrial plant.
In the realm of B2B industrial construction, a standard industrial building steel structure frame is the backbone of multi-story factories and heavy-duty processing centers. Unlike simpler structures, these frames are designed to handle immense dead loads (the weight of the structure itself) and live loads (machinery, inventory, and personnel). The precision of high-strength steel allows for thinner sections compared to concrete, providing more usable floor space for production lines and logistics equipment.
The structural integrity of an industrial building steel structure frame relies on the quality of its connections. Bolted connections are often preferred for their speed of onsite assembly, while welded connections offer superior rigidity for high-vibration environments. For a facility housing heavy overhead cranes or high-precision CNC machinery, a heavy-duty steel frame ensures minimal deflection and maximum safety over a decades-long lifecycle.
High Strength-to-Weight Ratio: Allows for taller buildings with smaller column footprints.
Design Flexibility: Easily accommodates future expansions or internal reconfigurations.
Sustainability: Steel is 100% recyclable, aligning with modern green building certifications.
Seismic Resistance: The inherent ductility of steel allows the industrial building steel structure to absorb energy during seismic events.
Feature | Rigid Frame | Braced Frame |
Lateral Resistance | Provided by stiff beam-to-column joints | Provided by diagonal bracing members |
Clear Space | Maximum; no internal obstructions | Moderate; bracing may limit some openings |
Cost | Higher due to complex joint welding | Lower; simpler connections and lighter sections |
Best For | High-end offices, aesthetic buildings | Standard industrial warehouses, storage |
Steel portal frames are low-rise structures characterized by a series of transverse frames made of columns and rafter beams, connected by rigid joints that transfer both moments and shear forces. This specific industrial building steel structure is the industry standard for single-story wide-span buildings such as distribution centers, hangars, and large-scale manufacturing workshops.
The efficiency of a portal industrial building steel structure lies in its ability to provide vast, column-free internal spaces. By using "haunches" (deepened sections at the eaves and apex), the frame can resist the highest bending moments where they occur most, allowing for the use of lighter steel sections in areas of lower stress. This optimization makes the portal frame one of the most cost-effective solutions for any industrial building steel structure project requiring spans between 15 and 60 meters.
Durability is another hallmark of the portal industrial building steel structure. Because these buildings often house sensitive inventory or high-value logistics operations, they are designed to withstand significant wind loads and snow accumulation. The integration of cold-formed purlins and side rails allows for the easy attachment of insulated cladding panels, ensuring thermal efficiency for temperature-controlled environments like food processing plants or pharmaceutical cold storage.
Logistics Hubs: Perfect for high-rack storage and frequent forklift movement.
Agricultural Buildings: Ideal for grain storage or livestock housing due to ventilation ease.
Retail Power Centers: Provides the open layout required for "big box" stores.
Workshops: Supports light overhead cranes and large access doors for heavy machinery.
Steel trusses are triangular frameworks composed of straight members connected at joints (nodes) to act as a single structural unit that primarily carries tension and compression forces. Within an industrial building steel structure, trusses are most frequently used for long-span roofs or as "bridge" supports where traditional solid-web beams would be too heavy or inefficient.
The geometric stability of the triangle makes the steel truss an exceptionally rigid industrial building steel structure component. By concentrating material only where it is needed to resist forces, trusses achieve incredible spans while remaining lightweight. This is particularly beneficial for facilities that require massive overhead clearance and minimal internal support, such as aircraft hangars, sports stadiums, or large-scale assembly halls for the aerospace industry.
In a technical industrial building steel structure context, trusses allow for the seamless integration of building services. The open "web" of the truss provides a natural pathway for HVAC ducting, electrical conduits, and fire suppression systems without sacrificing ceiling height. Whether utilizing a Pratt, Warren, or Fink truss design, the structural engineer can tailor the industrial building steel structure to specific point loads, such as heavy suspended conveyor systems or industrial filtration units.
Pratt Truss: Features vertical members in compression and diagonals in tension; highly economical.
Warren Truss: Uses equilateral triangles to spread loads evenly; ideal for long, continuous spans.
Fink Truss: A common roof truss for shorter spans that offers high internal volume.
Bowstring Truss: Used for curved roof designs, providing aesthetic value and efficient drainage.
Steel grids, or space frames, are three-dimensional structures consisting of interlocking struts in a geometric pattern that can span large areas with few internal supports. As a high-performance industrial building steel structure, the grid system excels in distributing loads in multiple directions, making it ideal for large-scale canopy structures, exhibition centers, and high-tech industrial parks.
The spatial nature of the steel grid industrial building steel structure offers unparalleled structural redundancy. Because every member is interconnected in a 3D matrix, the failure of a single component rarely leads to a progressive collapse, making this one of the safest systems for public-facing industrial buildings. For an industrial building steel structure that requires a signature architectural look—such as a modern R&D center or a prestigious corporate headquarters—the space grid provides both form and function.
From a logistics perspective, steel grids are highly modular. The individual tubes and spherical nodes can be manufactured in a factory with high precision and then transported in standard containers for rapid onsite assembly. This modularity reduces the need for heavy lifting equipment compared to massive solid-frame beams. When planning an industrial building steel structure in remote locations or regions with limited specialized labor, the "plug-and-play" nature of space grid components can significantly cut down on construction timelines.
Omnidirectional Load Distribution: Superior resistance to concentrated or uneven loads.
Lightweight Efficiency: Consumes less steel per square meter for extremely long spans.
Aesthetic Impact: Offers a clean, futuristic interior look that often requires no false ceiling.
Adaptability: Supports complex roof shapes, including domes, vaults, and free-form curves.
Criterion | Steel Portal Frame | Steel Space Grid |
Complexity | Low to Medium | High |
Span Capacity | Up to 60m (standard) | Up to 100m+ without columns |
Material Use | Heavy sections at joints | Lightweight tubes throughout |
Installation | Quick, requires cranes | Slower assembly, but less heavy lifting |
Best Application | Warehouse/Factory | Stadiums/Exhibition Halls |
Choosing the right industrial building steel structure is a strategic decision that balances upfront costs with long-term operational efficiency. For most B2B applications, the steel portal frame remains the gold standard for cost-effective, wide-span warehousing. However, as industrial requirements become more complex, the integration of steel building frames for multi-story functionality, steel trusses for specialized roof loading, and steel grids for massive spatial spans provides the necessary variety to meet any architectural or engineering challenge.
When investing in an industrial building steel structure, it is crucial to prioritize high-quality materials and precision engineering. A well-designed steel structure doesn't just house your operations; it enhances them by providing a safe, flexible, and durable environment. By selecting the appropriate frame type—whether it be a rigid frame for a heavy-duty processing plant or a space grid for a cutting-edge distribution hub—businesses can ensure their infrastructure is built to withstand the demands of the 2026 global market and beyond.
The future of the industrial building steel structure lies in pre-engineered excellence and sustainable design. As you plan your next expansion or new facility, consider how these four common types of steel building structures can be tailored to your specific technical requirements, ensuring your project is completed on time, within budget, and to the highest professional standards.
