HXSS-27
HXSS
HXSS-27
| Availability: | |
|---|---|
| Quantity: | |

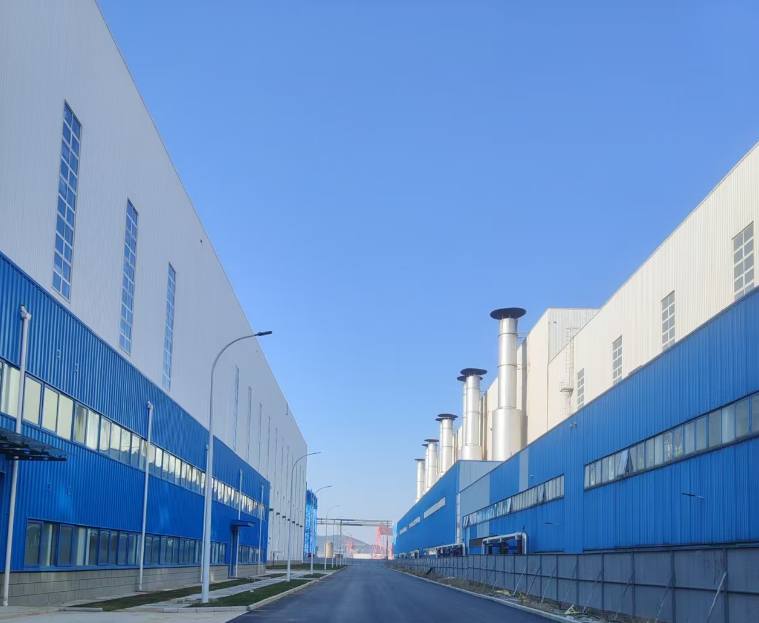

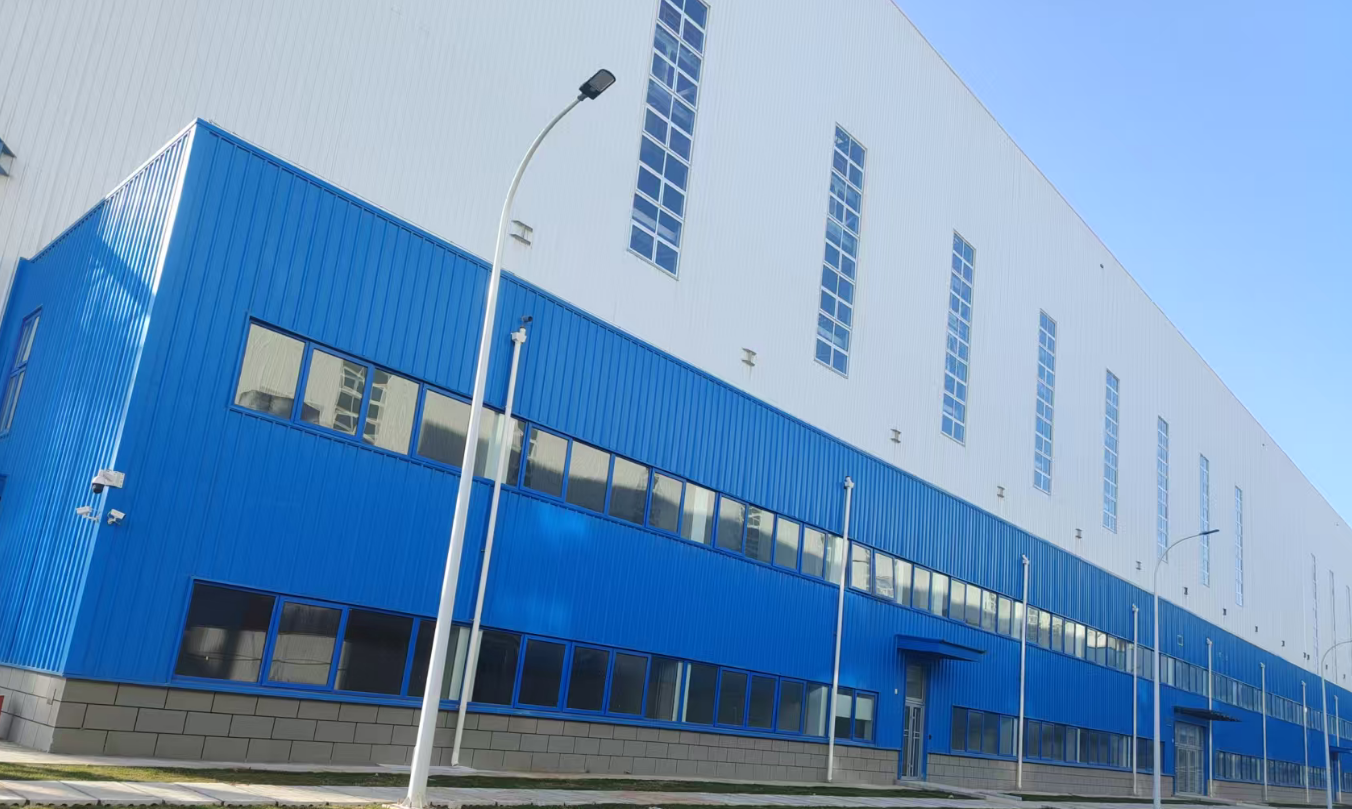

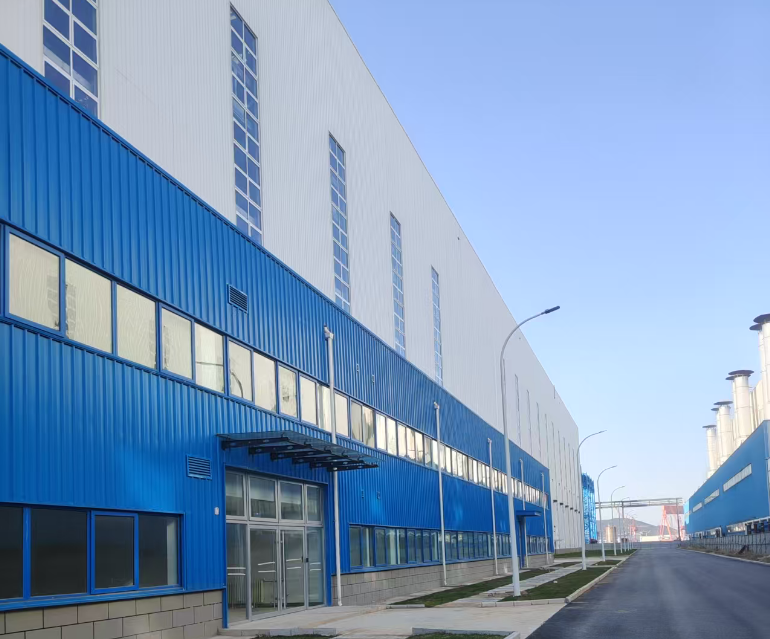

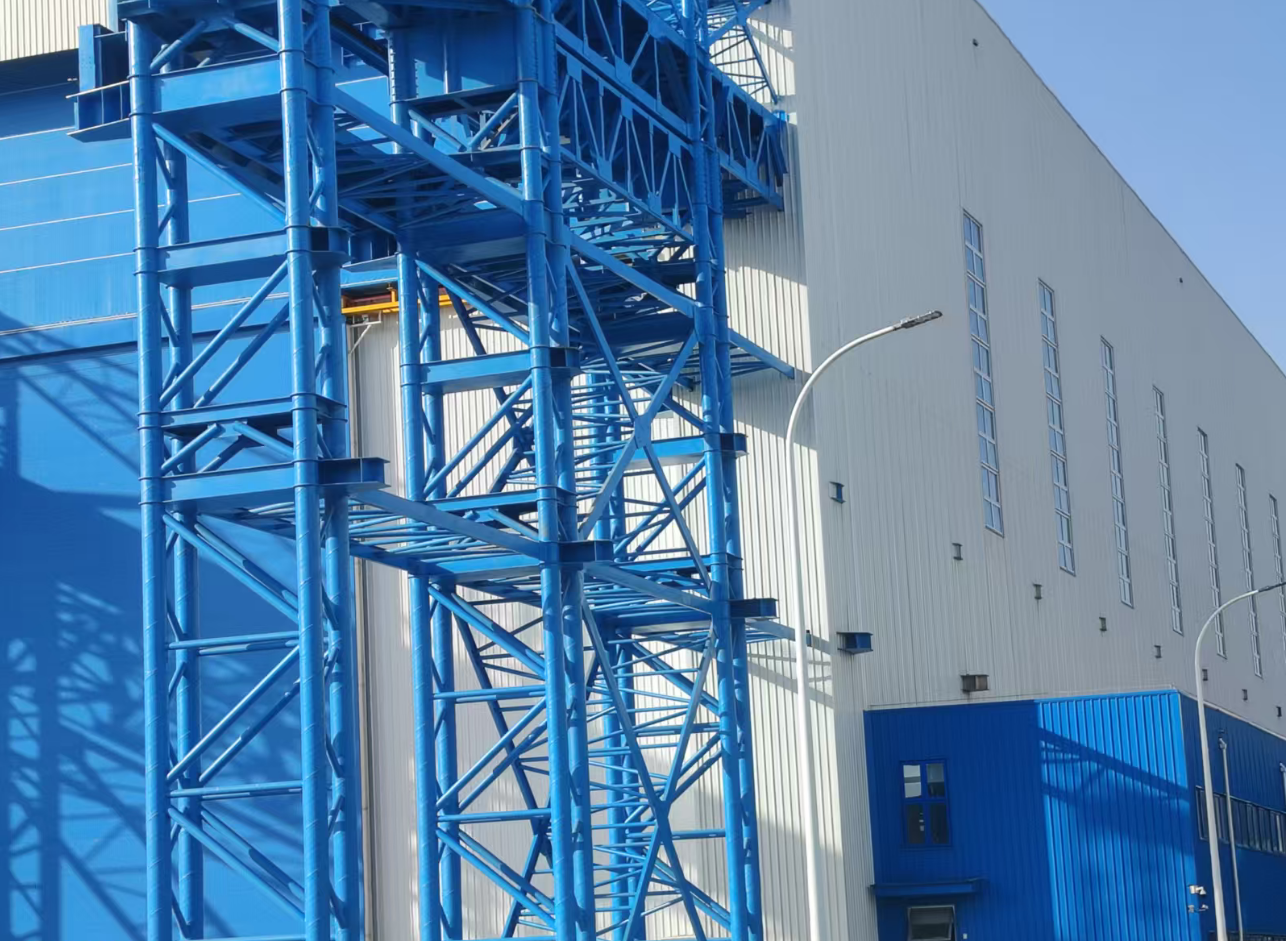

As a leading global manufacturer and strategic supplier of industrial storage solutions, we specialize in the engineering of high-rise, high-bay rack-supported warehouses. This sophisticated system, often referred to as a "silo" structure, represents the pinnacle of automated storage and retrieval systems (AS/RS). Unlike traditional setups, the racking itself serves as the primary structural frame of the building, supporting both the stored goods and the exterior cladding. This integrated approach optimizes vertical space, minimizes construction timelines, and provides an unmatched density for large-scale logistics operations, cold chain storage, and high-capacity distribution centers.
The High-rise High-bay Rack-supported Warehouse is a marvel of modern structural engineering, designed to transform how enterprises manage their inventory footprint. By utilizing the racking as the skeletal system of the building, we eliminate the need for traditional heavy steel columns and roof trusses, allowing for a seamless integration of automated machinery. This design allows for soaring heights—often exceeding 40 meters—which maximizes every cubic meter of your facility. From the moment the first upright is bolted into the precision-leveled foundation, the structure begins to take shape with industrial elegance. The cold-formed or hot-rolled steel components are finished with high-durability coatings that resist corrosion, ensuring the warehouse remains a structural asset for decades.
In operation, the system provides a rigid, vibration-resistant environment essential for the high-speed transit of stacker cranes and automated shuttles. The synergy between the structural racks and the automated components ensures that tolerances are kept within millimeters, even at extreme heights. This precision translates to whisper-quiet operations and reduced mechanical wear on your material handling equipment. By choosing this rack-supported architecture, you are not just purchasing a shelf; you are investing in a comprehensive building solution that harmonizes structural integrity with logistics efficiency, providing a controlled environment that is perfectly suited for temperature-sensitive goods or high-turnover consumer products.
| Parameter | Specification Details |
| System Type | Fully Automated Rack-supported Building (Silo) |
| Load Capacity | Up to 1,500 kg per pallet (Customizable for heavy loads) |
| Maximum Height | Up to 45 Meters (Project Dependent) |
| Material | High-tensile Q235B or Q355B Steel |
| Surface Treatment | Electrostatic Powder Coating or Hot-dip Galvanizing |
| Configuration | Single-deep, Double-deep, or Multi-deep (Shuttle) |
| Operational Temperature | -30°C to +45°C (Ideal for Ambient or Cold Storage) |
| Seismic Protection | Custom Engineered to Local Seismic Zone Requirements |
| Compliance | ISO9001, CE, RMI, and FEM Standards |
| Cladding Support | Integrated roof and wall purlin systems |
By bypassing the height limitations of conventional buildings, our rack-supported warehouses reclaim valuable land area. This vertical expansion allows for a 30% to 50% increase in storage capacity compared to traditional warehouses on the same footprint.
The simultaneous installation of the racking and the building envelope significantly reduces the project timeline. Since the racks serve as the building’s frame, there is no need to wait for a shell to be completed before moving in the storage infrastructure.
Engineering a building as a single cohesive unit results in exceptional stability. The distribution of loads through thousands of uprights creates a robust structure that excels in handling wind loads, heavy snow, and seismic activity with much higher safety margins than standard steel buildings.
Every rail, beam, and upright is manufactured with exacting tolerances to support high-speed AS/RS equipment. This ensures that stacker cranes can operate at peak velocity without the risk of collision or misalignment caused by structural swaying.
Safety is the cornerstone of our engineering philosophy. Each high-bay structure undergoes rigorous finite element analysis (FEA) to simulate local environmental stresses. We calculate the exact distribution of forces to ensure the rack-clad building can withstand peak wind speeds and seismic tremors without compromising the integrity of the automated systems or the stored products.

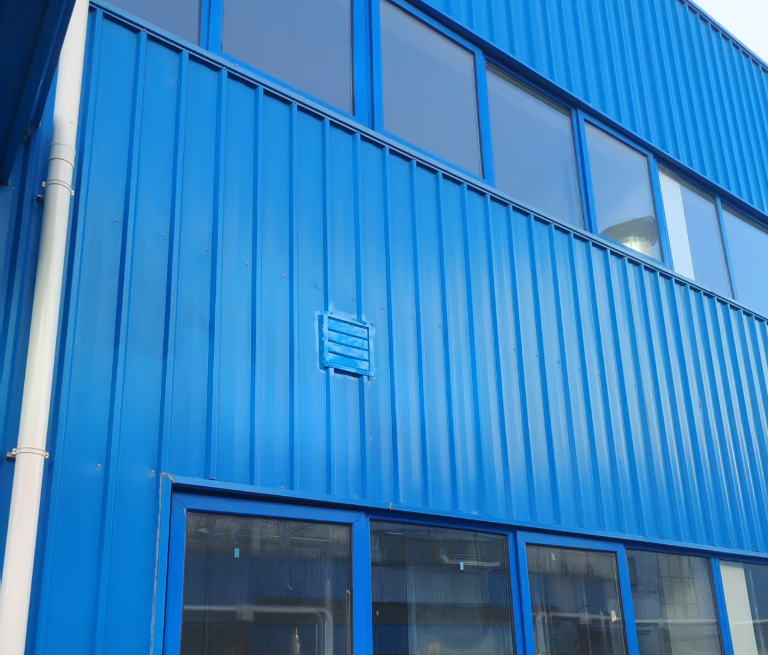

The exterior of the warehouse is more than just a shell; it is a specialized protective layer. We provide custom purlin and girt systems that allow for the direct attachment of insulated sandwich panels or metal sheeting. This ensures a perfectly airtight and thermal-efficient seal, which is critical for maintaining specific micro-climates in pharmaceutical or food storage applications.
Unlike traditional buildings that concentrate loads on a few massive columns, a rack-supported system distributes weight across a vast grid of base plates. This reduces the stress on the concrete slab and often allows for more efficient foundation designs, preventing long-term settling issues in large-scale facilities.
The compact nature of the high-bay silo makes it the gold standard for cold storage. By minimizing the total volume of the building relative to the number of pallets, energy consumption for refrigeration is drastically reduced. The structure remains stable even in sub-zero temperatures, preventing frost heave and maintaining alignment.
For factories producing goods 24/7, our warehouses act as high-speed buffers. The integration with WMS (Warehouse Management Systems) allows for real-time inventory tracking and rapid retrieval, ensuring that the manufacturing line is never stalled by logistics bottlenecks.
In the world of Fast-Moving Consumer Goods, speed and density are paramount. The high-bay rack-supported system handles thousands of SKU movements per hour, providing the reliability needed for regional distribution centers that serve millions of customers.
Our team consists of senior structural engineers and automation specialists who have successfully delivered large-scale silo projects across various continents. We don't just supply steel; we provide a turnkey engineering consultancy that guides you from the initial soil analysis to the final system commissioning.
Every component is produced in our state-of-the-art facility using automated welding and CNC punching machines. This ensures that the thousandth upright is just as precise as the first, a necessity for the millimetric tolerances required in automated high-bay storage.
We understand that a warehouse of this scale is a massive capital investment. We act as your primary partner, coordinating between the cladding suppliers, automation providers, and local contractors to ensure the structural phase of your project is seamless and stress-free.
Our use of high-grade materials and premium finishes means our structures are built to last for over 30 years. The simplicity of the rack-clad design reduces the number of moving structural parts, leading to lower facility maintenance costs over the life of the building.
While standard installations range between 20 and 30 meters, our engineering team can design systems that reach up to 45 meters in height. The final height is typically determined by your local building codes, the reach of the stacker crane technology selected, and the specific density requirements of your inventory.
Initially, the engineering for a rack-supported building is more complex; however, you save significantly on the cost of building columns and roof trusses. When you factor in the reduced land requirement, faster construction speed, and lower tax depreciation rates for equipment vs. real estate in many regions, the rack-supported model offers a superior Return on Investment (ROI).
Absolutely. One of the primary advantages of our system is the ability to engineer seismic resilience into the entire grid. By utilizing X-bracing and specialized base-plate connections, we can ensure the warehouse meets or exceeds the local seismic safety standards for any global location.
Due to the integrated nature of the roof and walls being supported by the racks, lateral expansion is the most common method of growth. We design the initial structure with future expansion in mind, allowing for new "aisles" to be added to the existing silo with minimal disruption to current operations.
Beyond standard annual inspections of bolt torques and floor leveling, these systems require very little maintenance. Because the structure is protected from the elements by the cladding and the indoor environment is usually climate-controlled, the steel components are remarkably well-preserved over time.
Compact construction logic: rack-supported structures reduce duplicated steelwork typical of “rack inside a hall” designs.
Better coordination for MEP and envelope: planned penetrations, cable routes, and interface points reduce rework later.
Designed for phased growth: capacity can expand with additional rack bays, automation modules, or throughput stations.
Many B2B buyers do not purchase an automated warehouse because it is “advanced.” They purchase it because their current operation is quietly bleeding time and cost in predictable places.
This solution directly targets:
Space constraint: when floor area is expensive, the only scalable direction is vertical.
Inconsistent throughput: manual handling output changes with shift experience, fatigue, and traffic. Automated retrieval is more repeatable.
Pick and putaway errors: human location memory is fragile during peak. Software assignment is consistent.
Damage and shrink: fewer touches and controlled motion reduce the incidents that create claims and rework.
Safety and compliance pressure: reducing high-elevation manual work and forklift congestion improves the risk profile of the facility.
If your operation is running multiple shifts, serving time-sensitive customers, or managing high-value goods, the value becomes practical: predictable output, fewer exceptions, and a warehouse that behaves like a controlled system instead of a busy parking lot.
Modern logistics demands speed, flexibility, and resilience. This high-bay rack-supported warehouse directly addresses these challenges.
Vertical design dramatically increases storage volume without expanding land footprint.
Ideal for urban logistics centers where space is limited.
Rack structure doubles as building support, lowering overall steel consumption.
Prefabricated components shorten construction schedules.
Automation reduces manual handling errors.
Consistent material flow increases throughput.
Modular expansion options allow future capacity growth.
Durable steel ensures long service life with minimal maintenance.
Instead of building bigger warehouses, businesses build smarter ones — transforming logistics into a strategic advantage.
| Application Industry | Typical Use Case | Key Advantages for Users | Recommended Environment |
|---|---|---|---|
| E-commerce Fulfillment Centers | High-speed order picking and automated sorting | Faster delivery cycles, reduced labor costs, accurate inventory tracking | High-throughput logistics hubs, urban distribution centers |
| Automotive & Machinery Parts Storage | Heavy component storage with automated retrieval | Strong load-bearing capacity, improved safety, organized spare-part management | Manufacturing plants, spare-parts warehouses |
| Pharmaceutical & Medical Logistics | Controlled storage with precise item tracking | High accuracy, reduced contamination risk, reliable traceability | Temperature-controlled and GMP-related facilities |
| Food & Cold Chain Distribution | Automated pallet storage in refrigerated environments | Space optimization, energy-efficient layout, stable structure in low temperatures | Cold storage warehouses, frozen logistics centers |
| Retail & Duty-free Distribution | High-density storage for fast-moving consumer goods | Efficient stock rotation, scalable automation integration | Airport logistics zones, bonded warehouses |
| Industrial Manufacturing Supply Chain | Raw material and finished goods buffering | Streamlined production flow, reduced handling time | Smart factories, automated production bases |
Quality is embedded in every phase, from engineering design to final installation.
Design Validation
Structural analysis ensuring stability under dynamic automated loads
Seismic and wind resistance modeling
Manufacturing Control
Precision fabrication using automated cutting and welding equipment
Surface treatment options including painting or galvanization
Inspection & Testing
Dimensional checks for rack alignment
Load testing simulations for safety verification
Documentation tracking for full traceability
Installation Support
On-site technical guidance
Assembly process optimization reducing installation errors
This structured quality approach ensures reliable performance in demanding logistics environments.
Q1: Can the height and load capacity be customized?
Yes. Each project is engineered according to storage requirements, automation systems, and environmental conditions.
Q2: Is it suitable for cold storage environments?
Absolutely. Insulated panels and temperature-control systems can be integrated.
Q3: How does automation improve efficiency?
Automated retrieval systems reduce manual labor, improve accuracy, and increase throughput.
