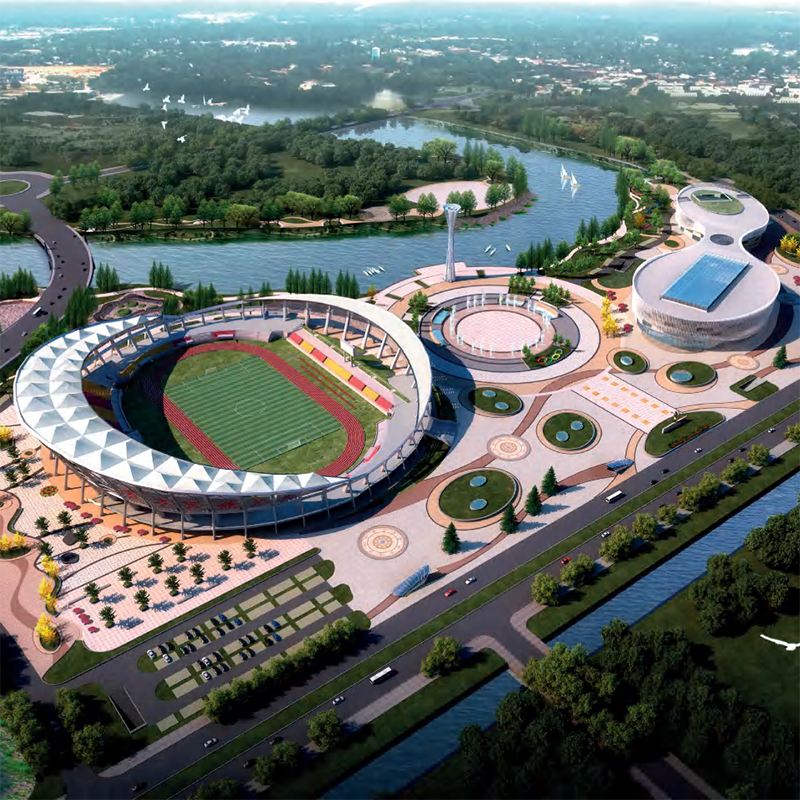

Engineered for monumental public spaces, this large span space steel structure provides the ultimate architectural framework for cultural landmarks. As a premier manufacturing and supplier solution, it delivers unparalleled strength and design freedom for the most demanding institutional projects.
Specifically engineered for museums, expansive showrooms, and multifunctional cultural centers.
Achieves massive, completely column-free interior spans ranging from 30 to over 100 meters.
Pre-fabricated off-site with digital precision for rapid, secure, and highly accurate on-site assembly.
Seamlessly integrates with advanced architectural cladding, including structural glass, titanium panels, and GFRP.
The creation of iconic cultural landmarks requires an engineering foundation that balances sheer strength with elegant invisibility. Our large span space steel structures are meticulously designed to transform ambitious architectural blueprints into breathtaking realities. By utilizing high-grade structural steel, these frameworks offer a robust yet surprisingly lightweight skeleton that supports sweeping cantilevers, soaring roofs, and intricate geometric facades. The tactile precision of the circular hollow steel members, combined with the seamless integration of high-strength bolted and welded connections, results in a structural masterpiece that feels as enduring as the cultural artifacts it is built to protect and showcase.
Beyond its formidable load-bearing capabilities, this steel structure system redefines interior volume. It elegantly transfers massive structural loads to the perimeter or strategic internal cores, completely eliminating the need for intrusive interior columns. The result is a pristine, uninterrupted spatial volume—a blank canvas that invites curatorial flexibility and grand public gatherings. Whether bathed in controlled natural light filtering through a gridshell roof or supporting the heavy rigging of a modern theatrical performance, the framework remains unyielding. Every component is digitally modeled and fabricated with exacting tolerances, ensuring that the final assembly not only meets but exceeds the stringent demands of modern architectural engineering and long-term public safety.
Primary Application Scenarios | Museums, large exhibition centers, multifunctional cultural centers, art galleries, large public gathering spaces |
Core Structural Systems | Long-Span Trusses, Space Frames / 3D Trusses, Arch-Supported Structures, Gridshells, Cable-net / Suspended Roof Systems |
Span Capacity | 30 meters to over 100 meters (Supports ultra-large span customization) |
Main Material | High-strength structural steel (e.g., Circular Hollow Steel, standard diameter range 60mm-273mm) |
Connection Methods | High-strength bolted connections, threaded connection systems (e.g., Mero KK system), precision welding |
Surface & Safety Treatment | Industrial-grade anti-corrosion coating, professional fire-retardant paint, fire protection cladding systems |
Facade / Roof Compatibility | Glass curtain walls, titanium panels, GFRP (Glass Fiber Reinforced Polymer), GFRC (Glass Fiber Reinforced Concrete), custom metal panels, PV (Photovoltaic) integrated panels |
Manufacturing Process | BIM 3D modeling deep design, off-site digital precision fabrication |
Resistance Indicators | High seismic resistance, high wind load resistance, strict deflection and vibration control |
Deploying advanced engineering methodologies, this structural system offers distinct advantages for large-scale public and institutional developments. The integration of cutting-edge materials and precision fabrication ensures exceptional performance across all technical and aesthetic metrics.
Hybrid and Composite Capabilities: Seamlessly integrates with concrete cores or floors to optimize material performance, creating a unified, hyper-stable building envelope that maximizes structural efficiency.
Advanced Load Distribution: Interconnected space frames and long-span trusses distribute weight three-dimensionally, enabling rigid, lightweight roofs over enormous footprints without sagging or instability.
Unrestricted Curatorial Freedom: By eliminating vertical visual obstructions, the system allows for the completely unrestricted display of large-scale art installations, commercial vehicles, and historical artifacts.
Acoustic and Environmental Synergy: The deep structural cavities inherent in the truss designs provide ample room for integrating advanced HVAC systems, acoustic dampening materials, and complex lighting rigs without compromising the clean aesthetic ceiling line.
Exceptional Material Efficiency: The high strength-to-weight ratio of the steel framework significantly reduces the overall dead load of the building, minimizing deep foundation requirements and associated groundworks.
Maximizing usable interior volume is the primary imperative for large-scale institutional projects. This advanced steel framework is engineered to eliminate vertical interruptions, providing an expansive, highly adaptable environment.
Achieves monumental clear spans ranging from 30 meters to well over 100 meters, engineered specifically to accommodate unique site requirements and architectural visions.
Creates a 100% "blank canvas" interior, essential for accommodating rotating museum exhibitions, expansive auto shows, or dynamic, reconfigurable theatrical stages.
Enhances long-term operational viability by allowing complete interior reconfiguration without any risk to the building's core structural integrity.
Facilitates unobstructed sightlines across vast halls, significantly improving crowd flow, security monitoring, and the overall immersive visitor experience.
Cultural institutions demand iconic, recognizable silhouettes that define city skylines. The inherent ductility and tensile strength of this steel system empower architects to push the absolute boundaries of geometric design.
Provides the rigid, unyielding skeleton necessary to support dramatic sweeping cantilevers and soaring, multi-curved rooflines that defy gravity.
Expertly accommodates single-curved, double-curved, and highly complex freeform geometric designs through precision-engineered nodes and customized tubular members.
Serves as a robust, highly compatible substrate for innovative cladding systems, including translucent structural glass grids, shimmering titanium plates, and lightweight GFRP panels.
Enables the precise control of natural daylighting through the seamless integration of expansive skylights and intricate structural lattice patterns, casting dynamic shadows across the exhibition floor.
Public gathering spaces require uncompromising structural resilience. This system is subjected to rigorous computational analysis to ensure absolute stability under both daily operational stresses and extreme environmental events.
Engineered with exceptional live load bearing capacity, safely supporting dense crowds, heavy temporary exhibition structures, and complex suspended theatrical rigging.
Implements strict deflection and vibration control measures, ensuring a solid, stable feel underfoot even in expansive cantilevered zones or elevated upper-level galleries.
Designed to withstand severe environmental loads, featuring high seismic resistance and the ability to endure extreme wind pressures typical of coastal or high-altitude locations.
Utilizes robust connection nodes, such as the threaded Mero KK system and precision welding protocols, to guarantee the integrity of every critical load path throughout the structure.
Accelerating project timelines while maintaining millimeter-level accuracy is achieved through a fully digitized manufacturing and assembly workflow. This approach significantly mitigates on-site risks, material waste, and costly delays.
Utilizes comprehensive Building Information Modeling (BIM) for deep 3D design, identifying and resolving potential structural clashes long before physical production begins.
Relies on off-site digital precision fabrication, where components are cut, welded, and inspected in a controlled factory environment to ensure flawless, repeatable quality.
Adopts a highly efficient "off-site prefabrication plus on-site assembly" model, drastically reducing the required footprint for on-site construction activities in dense urban areas.
Significantly shortens the overall construction lifecycle, ensuring that time-sensitive exhibition halls and cultural centers meet their strict grand opening deadlines without compromising safety.
Ensuring the safety of occupants and the longevity of the structure is a non-negotiable standard. Comprehensive protective treatments are integrated directly into the steel components to provide decades of reliable, safe performance.
Incorporates sophisticated fire safety solutions, including the application of high-performance intumescent coatings and advanced structural fire-protection cladding systems.
Maintains critical structural stability during high-temperature fire events, securing the necessary time for safe, orderly mass evacuation of public spaces.
Treated with industrial-grade anti-corrosion coatings that aggressively resist moisture penetration, chemical degradation, and harsh atmospheric weathering.
Dramatically reduces the total cost of ownership by minimizing the need for frequent, disruptive maintenance interventions over the building's multi-decade lifecycle.
Aligning with the highest global standards for green building, this structural framework offers significant environmental and economic benefits from the initial build phase through long-term, daily operation.
Constructed from 100% recyclable high-strength steel, promoting a circular economy and significantly reducing the ecological footprint of massive public infrastructure projects.
Leverages a lightweight structural profile that dramatically decreases the volume of concrete and deep foundation materials required to anchor the building.
Optimizes energy efficiency by providing the vast, unobstructed roof areas necessary for large-scale photovoltaic (PV) panel integration, turning the roof into a power generator.
Future-proofs the investment by offering unparalleled spatial adaptability, allowing the building's interior to evolve seamlessly alongside changing cultural, technological, and exhibition demands.
Selecting the right manufacturing partner for monumental architectural projects requires absolute confidence in their engineering pedigree, production capacity, and strict quality assurance protocols. We deliver an integrated value proposition that transforms complex blueprints into enduring, safe realities.
End-to-End Engineering Expertise: From initial BIM spatial modeling to final on-site assembly logistics, our engineering teams provide comprehensive support, ensuring no structural detail is overlooked.
State-of-the-Art Fabrication Facilities: Our production lines utilize advanced CNC machinery and robotic welding, guaranteeing that every circular hollow section and connection node meets exact digital specifications.
Stringent Quality Assurance: Every single component undergoes rigorous non-destructive testing (NDT), precise dimensional checks, and coating thickness verifications to ensure absolute compliance with international safety standards.
Proven Track Record of Excellence: We have successfully supplied the structural frameworks for numerous high-profile museums, iconic cultural centers, and expansive showrooms, demonstrating our capability to handle immense scale and geometric complexity.
Global Logistics and Support: We expertly manage complex supply chains to deliver prefabricated structural elements safely and efficiently to construction sites worldwide, perfectly synchronized with your critical assembly schedule.
For ultra-large spans, thermal expansion and contraction are critical engineering factors. We design and integrate specialized expansion joints, sliding bearings, and flexible connection nodes (such as customized Mero systems) that safely absorb thermal movement. Our advanced BIM simulations accurately predict these dimensional changes across varying climates, ensuring that the structural integrity and the weather-tightness of the integrated facade systems remain uncompromised year-round.
We utilize a multi-tiered approach to fire protection depending on the architectural vision and local building codes. For exposed structural aesthetics, we apply highly durable, thin-film intumescent coatings that expand under extreme heat to insulate the steel while preserving its visual profile. Where the structure is concealed, we utilize robust fire-resistant boarding or cementitious sprays, ensuring the framework meets the stringent fire-rating requirements of high-occupancy public venues.
Absolutely. The space frame and long-span truss designs are inherently capable of distributing heavy, localized point loads across the broader structural network. During the deep design phase, we calculate the required live load capacities for specific nodal points, reinforcing them to safely support dynamic rigging, heavy lighting trusses, and monumental suspended exhibits without exceeding strict deflection limits.
For aggressive environments, we implement a comprehensive, multi-coat industrial protective system. This process typically involves abrasive blast cleaning to a high standard (e.g., SA 2.5), followed immediately by a zinc-rich epoxy primer, a micaceous iron oxide (MIO) intermediate coat for superior barrier protection, and a UV-resistant polyurethane topcoat. This robust system guarantees exceptional durability and minimal maintenance over decades of exposure.
Seamless integration is achieved through precisely engineered secondary steelwork and custom brackets that interface directly with the primary structure. Using highly detailed 3D modeling, we design attachment points that accommodate the specific tolerances, thermal movements, and weight profiles of advanced cladding materials like titanium, GFRP, or structural glass. This ensures a flawless, weatherproof architectural envelope that perfectly aligns with the designer's original vision.
