HXSS-25
HXSS
HXSS-25
| Availability: | |
|---|---|
| Quantity: | |
In the vast, complex, and demanding world of hydrocarbon processing, where raw materials are transformed into the fuels, plastics, and chemicals that power modern civilization, infrastructure is not merely a support system—it is a fundamental component of safety, efficiency, and reliability. At the core of this infrastructure lies specialized structural steel, the indispensable skeleton upon which the entire operation depends. For Oil Refining & Chemical Petrochemical Bases, steel structures are far more than simple frameworks; they are highly engineered solutions designed to withstand unparalleled stresses, corrosive environments, and extreme operational demands. This product introduction delves into the critical role, advanced engineering, and inherent value of structural steel engineered explicitly for the petrochemical sector.
I. The Uncompromising Demands of the Petrochemical Environment
A petrochemical base is a theater of extreme forces. The structural steel deployed here must be conceived and fabricated to meet a unique set of challenges that dwarf those of conventional construction:
Extreme Loads and Dynamic Forces: Structures must support immense static loads: colossal distillation columns, reactor vessels weighing hundreds of tons, extensive pipe racks filled with high-density fluids, and multi-tiered access platforms. Beyond this, they must resist dynamic forces from wind, seismic activity, thermal expansion/contraction of process equipment, and vibrations from machinery and fluid flow.
Aggressive Corrosion: The environment is saturated with corrosive agents. Atmospheres can be laden with moisture, salt (in coastal areas), sulfur compounds (e.g., H₂S), chlorine, and acidic fumes. Potential spills or leaks of process chemicals pose a direct threat. Corrosion is the primary enemy of longevity and structural integrity in this setting.
Fire and High-Temperature Hazards: The presence of flammable hydrocarbons creates an inherent fire risk. Structural steel must be protected to maintain its load-bearing capacity during high-temperature events to prevent catastrophic, progressive collapse.
Functional Integration and Accessibility: The structure is not passive. It must be intelligently designed to facilitate optimal process flow, provide safe and unhindered access for operation, maintenance, and inspection, and allow for future plant modifications or expansions with minimal downtime.
II. Core Engineering Principles: Designing for Resilience and Safety
The philosophy behind petrochemical steel structures is "Preventive Resilience." Every design and fabrication decision is made to preemptively address the environmental and operational challenges.
Advanced Material Science and Selection:
High-Strength, Low-Alloy (HSLA) Steels: These grades offer superior yield strength, allowing for lighter, more efficient sections that reduce overall weight and foundation costs while maintaining exceptional load-bearing capacity.
Tailored Corrosion Protection: A multi-layered defense strategy is employed. This includes hot-dip galvanizing for a robust, sacrificial zinc layer; advanced multi-coat paint systems (epoxy primers, polyurethane topcoats) engineered for chemical resistance; and in areas of severe exposure, cladding with stainless steel or specialized alloy sheets.
Fire Protection Systems: To meet stringent fire-rating requirements, steel members are protected with intumescent coatings that expand into an insulating char when heated, cementitious sprays, or fire-resistant board encapsulation. This ensures critical structural stability is maintained during a fire event.
Sophisticated Design and Fabrication:
Modularization and Pre-Fabrication: Large structural assemblies are built under controlled factory conditions. This "modular" approach ensures higher quality control, minimizes costly and hazardous field welding, and dramatically accelerates on-site erection schedules, reducing overall project timelines.
Precision Engineering for Integration: Designs are fully integrated with process and piping models (using 3D BIM). This precision ensures perfect fit-up, avoids costly field rework, and accommodates pre-installed elements like pipe supports, cable trays, and access ladders directly onto the modules.
Durability-Centric Detailing: Designs avoid moisture traps, use generous drainage details, and specify thickened materials in high-wear areas to combat corrosion and physical damage, extending the structure's service life.
III. Key Structural Components and Their Functions
A petrochemical base utilizes specialized steel structures, each with a distinct purpose:

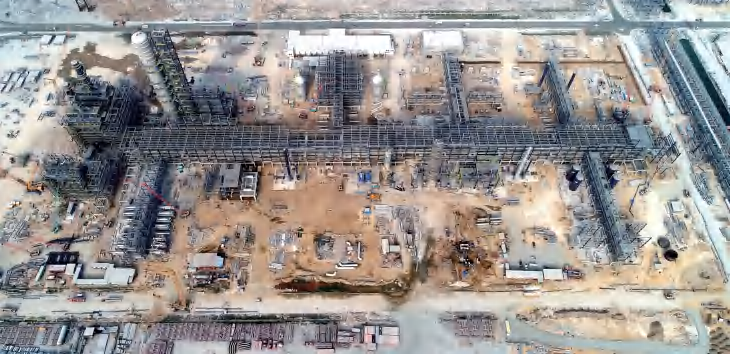

Pipe Racks and Sleepers: The arterial highway of the plant. These elevated, multi-level structures carry the intricate network of process, utility, and instrument piping, along with electrical cable trays. They are designed for immense loads and future expansion.
Process Structure and Module Supports: These are the heavy-duty platforms and frames that directly support major equipment like heat exchangers, pumps, vessels, and reactors. They are engineered for precise load distribution and dynamic forces.
Access and Service Platforms: An essential safety and operational feature, providing stable, secure walkways, ladders, and work areas for routine monitoring, maintenance, and emergency response.
Building and Enclosure Structures: These house control rooms, substations, compressor stations, and other critical facilities, providing protection from the elements and, often, blast-resistant design where required.
IV. The Compelling Value Proposition: Beyond Initial Cost
Investing in engineered structural steel for a petrochemical base delivers a superior lifetime value that justifies its specification.
Accelerated Project Schedule: Modular construction parallelizes fabrication and site preparation, cutting months off the critical path and enabling earlier production and revenue generation.
Enhanced Safety and Reduced Risk: Superior corrosion and fire protection, combined with precise, controlled fabrication, minimizes long-term integrity risks and on-site construction hazards.
Unmatched Durability and Low Life-Cycle Cost: The engineered defense systems against corrosion and wear result in dramatically lower maintenance costs, fewer operational interruptions for repairs, and an extended asset lifespan.
Operational Flexibility: The inherent strength and clear-span capabilities of steel facilitate easier future retrofitting, equipment upgrades, and capacity expansions, protecting the owner's capital investment over decades.
In the vast, complex, and demanding world of hydrocarbon processing, where raw materials are transformed into the fuels, plastics, and chemicals that power modern civilization, infrastructure is not merely a support system—it is a fundamental component of safety, efficiency, and reliability. At the core of this infrastructure lies specialized structural steel, the indispensable skeleton upon which the entire operation depends. For Oil Refining & Chemical Petrochemical Bases, steel structures are far more than simple frameworks; they are highly engineered solutions designed to withstand unparalleled stresses, corrosive environments, and extreme operational demands. This product introduction delves into the critical role, advanced engineering, and inherent value of structural steel engineered explicitly for the petrochemical sector.
I. The Uncompromising Demands of the Petrochemical Environment
A petrochemical base is a theater of extreme forces. The structural steel deployed here must be conceived and fabricated to meet a unique set of challenges that dwarf those of conventional construction:
Extreme Loads and Dynamic Forces: Structures must support immense static loads: colossal distillation columns, reactor vessels weighing hundreds of tons, extensive pipe racks filled with high-density fluids, and multi-tiered access platforms. Beyond this, they must resist dynamic forces from wind, seismic activity, thermal expansion/contraction of process equipment, and vibrations from machinery and fluid flow.
Aggressive Corrosion: The environment is saturated with corrosive agents. Atmospheres can be laden with moisture, salt (in coastal areas), sulfur compounds (e.g., H₂S), chlorine, and acidic fumes. Potential spills or leaks of process chemicals pose a direct threat. Corrosion is the primary enemy of longevity and structural integrity in this setting.
Fire and High-Temperature Hazards: The presence of flammable hydrocarbons creates an inherent fire risk. Structural steel must be protected to maintain its load-bearing capacity during high-temperature events to prevent catastrophic, progressive collapse.
Functional Integration and Accessibility: The structure is not passive. It must be intelligently designed to facilitate optimal process flow, provide safe and unhindered access for operation, maintenance, and inspection, and allow for future plant modifications or expansions with minimal downtime.
II. Core Engineering Principles: Designing for Resilience and Safety
The philosophy behind petrochemical steel structures is "Preventive Resilience." Every design and fabrication decision is made to preemptively address the environmental and operational challenges.
Advanced Material Science and Selection:
High-Strength, Low-Alloy (HSLA) Steels: These grades offer superior yield strength, allowing for lighter, more efficient sections that reduce overall weight and foundation costs while maintaining exceptional load-bearing capacity.
Tailored Corrosion Protection: A multi-layered defense strategy is employed. This includes hot-dip galvanizing for a robust, sacrificial zinc layer; advanced multi-coat paint systems (epoxy primers, polyurethane topcoats) engineered for chemical resistance; and in areas of severe exposure, cladding with stainless steel or specialized alloy sheets.
Fire Protection Systems: To meet stringent fire-rating requirements, steel members are protected with intumescent coatings that expand into an insulating char when heated, cementitious sprays, or fire-resistant board encapsulation. This ensures critical structural stability is maintained during a fire event.
Sophisticated Design and Fabrication:
Modularization and Pre-Fabrication: Large structural assemblies are built under controlled factory conditions. This "modular" approach ensures higher quality control, minimizes costly and hazardous field welding, and dramatically accelerates on-site erection schedules, reducing overall project timelines.
Precision Engineering for Integration: Designs are fully integrated with process and piping models (using 3D BIM). This precision ensures perfect fit-up, avoids costly field rework, and accommodates pre-installed elements like pipe supports, cable trays, and access ladders directly onto the modules.
Durability-Centric Detailing: Designs avoid moisture traps, use generous drainage details, and specify thickened materials in high-wear areas to combat corrosion and physical damage, extending the structure's service life.
III. Key Structural Components and Their Functions
A petrochemical base utilizes specialized steel structures, each with a distinct purpose:
Pipe Racks and Sleepers: The arterial highway of the plant. These elevated, multi-level structures carry the intricate network of process, utility, and instrument piping, along with electrical cable trays. They are designed for immense loads and future expansion.
Process Structure and Module Supports: These are the heavy-duty platforms and frames that directly support major equipment like heat exchangers, pumps, vessels, and reactors. They are engineered for precise load distribution and dynamic forces.
Access and Service Platforms: An essential safety and operational feature, providing stable, secure walkways, ladders, and work areas for routine monitoring, maintenance, and emergency response.
Building and Enclosure Structures: These house control rooms, substations, compressor stations, and other critical facilities, providing protection from the elements and, often, blast-resistant design where required.
IV. The Compelling Value Proposition: Beyond Initial Cost
Investing in engineered structural steel for a petrochemical base delivers a superior lifetime value that justifies its specification.
Accelerated Project Schedule: Modular construction parallelizes fabrication and site preparation, cutting months off the critical path and enabling earlier production and revenue generation.
Enhanced Safety and Reduced Risk: Superior corrosion and fire protection, combined with precise, controlled fabrication, minimizes long-term integrity risks and on-site construction hazards.
Unmatched Durability and Low Life-Cycle Cost: The engineered defense systems against corrosion and wear result in dramatically lower maintenance costs, fewer operational interruptions for repairs, and an extended asset lifespan.
Operational Flexibility: The inherent strength and clear-span capabilities of steel facilitate easier future retrofitting, equipment upgrades, and capacity expansions, protecting the owner's capital investment over decades.
A petrochemical base is an ecosystem. The structural system must support the process flow and the people who keep it running.
Common structural components within this solution scope:
Pipe racks and sleepers: Multi-level support for process lines, utilities, instruments, and cable trays, with allowance for future lines where required.
Equipment platforms and module supports: Heavy-duty frames for vessels, exchangers, pumps, reactors, and skid-mounted units.
Access and service platforms: Walkways, stairs, ladders, and working decks that make inspections feel secure rather than improvised.
Enclosures and functional buildings: Structural frames for substations, control rooms, compressor station buildings, and maintenance shelters.
Key planning considerations (buyer-ready):
Define equipment weights and dynamic factors early
Declare maintenance routes and lifting paths
Reserve zones for future piping expansion
Coordinate elevation strategy so operators move efficiently and safely
Oil and gas sites are defined by risk control. Your structure contributes to safety every day, not only during incidents.
Safety value built into the structural concept:
Fire risk readiness: Fireproofing and compartment-oriented planning can be considered early rather than added late.
Explosion and blast considerations: When required, structural zones can be engineered with risk-based strengthening and protective layouts.
Noise and vibration management: Where equipment noise affects nearby areas, building envelopes and panels can be designed with sound control strategies.
Safe access by default: Platforms, handrails, anti-slip grating, and clear egress routes reduce “temporary” solutions that become permanent hazards.
Crane and lifting coordination: Frames can be designed to accommodate maintenance lifting strategies, reducing unsafe ad-hoc rigging.
The goal is practical: a plant that feels safer to walk through. Stable underfoot. Clear in its pathways. Less chaotic in tight operating windows.
A petrochemical base is an ecosystem. The structural system must support the process flow and the people who keep it running.
Common structural components within this solution scope:
Pipe racks and sleepers: Multi-level support for process lines, utilities, instruments, and cable trays, with allowance for future lines where required.
Equipment platforms and module supports: Heavy-duty frames for vessels, exchangers, pumps, reactors, and skid-mounted units.
Access and service platforms: Walkways, stairs, ladders, and working decks that make inspections feel secure rather than improvised.
Enclosures and functional buildings: Structural frames for substations, control rooms, compressor station buildings, and maintenance shelters.
Key planning considerations (buyer-ready):
Define equipment weights and dynamic factors early
Declare maintenance routes and lifting paths
Reserve zones for future piping expansion
Coordinate elevation strategy so operators move efficiently and safely
Oil and gas sites are defined by risk control. Your structure contributes to safety every day, not only during incidents.
Safety value built into the structural concept:
Fire risk readiness: Fireproofing and compartment-oriented planning can be considered early rather than added late.
Explosion and blast considerations: When required, structural zones can be engineered with risk-based strengthening and protective layouts.
Noise and vibration management: Where equipment noise affects nearby areas, building envelopes and panels can be designed with sound control strategies.
Safe access by default: Platforms, handrails, anti-slip grating, and clear egress routes reduce “temporary” solutions that become permanent hazards.
Crane and lifting coordination: Frames can be designed to accommodate maintenance lifting strategies, reducing unsafe ad-hoc rigging.
The goal is practical: a plant that feels safer to walk through. Stable underfoot. Clear in its pathways. Less chaotic in tight operating windows.
