A large span steel structure refers to an advanced engineering construction framework with a clear horizontal distance exceeding 24 meters, primarily utilizing structural steel elements such as trusses, space frames, and cable-suspension systems to cover expansive areas without intermediate column supports, thereby optimizing spatial utilization, ensuring structural integrity through high strength-to-weight ratios, and adapting perfectly to commercial, industrial, and infrastructural demands globally.
Section | Summary |
What are Large-Span Steel Structures? | Comprehensive analysis of engineering boundaries, geometric patterns, and fundamental classifications defining modern large span steel structure mechanics. |
The Characteristics of Large-Span Steel Structures | Detailed evaluation of physical attributes, load distribution profiles, rigidity characteristics, and geometric behaviors under stress configurations. |
The Advantage of Large-Span Steel Structures | Deep inspection of material optimization, architectural freedom, seismic resilience, and economic sustainability over traditional concrete alternatives. |
Primary Engineering Applications | Systematic categorization of standard deployment zones, including industrial, commercial, and transport infrastructure projects. |
A large span steel structure is an engineered architectural system designed to cross significant horizontal distances without intermediate vertical supports, utilizing premium structural steel to distribute dead and live loads safely to peripheral foundations.
Modern architectural layouts heavily favor spatial optimization, requiring engineers to design large span steel structure systems capable of clearing fields from 24 meters up to several hundred meters. These structural forms operate under high tensile and compressive stresses, calling for exact cross-sectional sizing and material selection. In industrial and commercial applications, the implementation of a large span steel structure allows for complete operational flexibility, unhindered material handling, and custom machinery positioning. The mechanical efficiency of a large span steel structure hinges on the distribution of complex loads across geometric arrangements, transforming bending moments into axial forces.
From a mechanical perspective, the selection of the correct layout for a large span steel structure depends heavily on environmental variables and planned structural use. Engineering teams evaluate long-term load profiles, temperature deformations, and foundation stability conditions. A professionally designed large span steel structure integrates digital manufacturing data with automated welding or bolting systems, ensuring that actual structural behavior matches theoretical finite element analysis models. International procurement managers focus on the structural adaptability of these large span steel structure systems, looking for ways to integrate modern insulation, acoustics, and clean utility networks directly into the steel framing.
To deliver these structural configurations across demanding commercial projects, engineers often specify high-performance large span space steel structure systems. These multi-dimensional frameworks spread stress effectively in three dimensions, making them ideal for heavy industrial setups. By using specialized prefabricated parts, the large span steel structure minimizes field assembly errors and shortens construction timelines significantly. The table below details the technical boundaries and standard structural classifications used in modern engineering analysis for a large span steel structure.

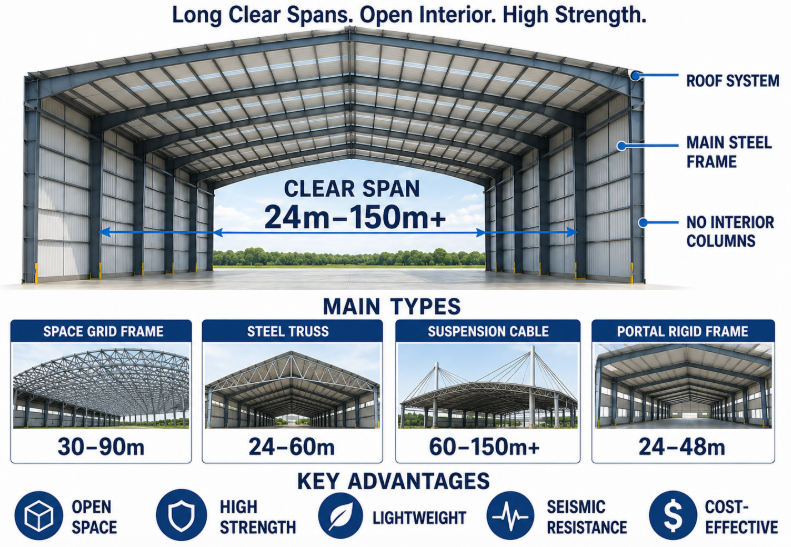

Structural Configuration Type | Standard Span Range (m) | Primary Component Members | Load Transfer Mechanism | Engineering Highlight |
Space Grid Frame Systems | 30 to 90 | Steel pipes, solid steel balls, high-strength bolts | Three-dimensional axial force dispersion | High structural rigidity |
Steel Truss Configurations | 24 to 60 | H-beams, square hollow sections, gusset plates | Planar bending converted to axial tension/compression | Economical for unidirectional spans |
Suspension Cable Frameworks | 60 to 150+ | High-tensile steel cables, steel anchors, pylons | Pure tensile stress distribution | Extremely lightweight layout |
Portal Rigid Frame Setups | 24 to 48 | Variable cross-section H-beams, purlins, bracing | Rigid joint bending moment resistance | Standard for industrial warehouses |
The structural reliability of a large span steel structure depends heavily on the properties of the steel selected. Engineers calculate stress concentrations using specialized software, ensuring that the large span steel structure remains elastic under maximum wind and seismic conditions. The selection of materials typically includes high-strength structural steel variants that provide excellent yield points and ductility. By focusing on these properties, the large span steel structure resists sudden failure modes, allowing the framing to absorb dynamic loads safely through controlled structural deflection.
Structural calculation methodologies define the critical buckling load for individual compression members within a large span steel structure. The mathematical relationship establishes that the critical buckling capacity decreases inversely with the square of the effective length of the structural steel member, while remaining directly proportional to the modulus of elasticity and the minimum moment of inertia of the steel profile. By modifying the geometric profile and cross-sectional properties of the steel sections, engineers optimize the large span steel structure to carry higher loads while reducing overall dead weight.
The primary characteristics of a large span steel structure include its three-dimensional structural action, low dead-weight ratio relative to the clear span, high vulnerability to wind-induced vibrations, and reliance on prefabricated modular components.
A central characteristic of a large span steel structure is its unique spatial behavior. Unlike standard post-and-beam configurations that transfer loads along single planes, a large span steel structure relies on interconnected elements to share loads across multiple directions. This structural approach allows the large span steel structure to spread heavy localized forces evenly across the entire frame. The light weight of these frames ensures that foundation designs can be optimized, lowering total infrastructure costs for large-scale engineering projects.
Another major feature of the modern large span steel structure is its adaptation to digital prefabrication methods. Because these structures feature long spans and high spatial complexity, manual site cutting and welding are impractical. Every node, bolt hole, and member of a large span steel structure is manufactured under tight factory tolerances before shipping. Global clients often select these setups because factory-controlled manufacturing ensures consistent welding quality and reliable anti-corrosion treatments, which are difficult to achieve in the field. This high level of prefabrication makes the large span steel structure a top choice for fast-track construction schedules.
When selecting a high-performance framework, engineers focus on custom engineered large span space steel structure systems to handle specialized architectural layouts. These configurations offer exceptional torsional stiffness, helping the building resist twisting forces from uneven environmental loads. The integration of high-strength bolt assemblies and CNC-machined nodes ensures the large span steel structure maintains its precise geometry under long-term stress. The table below lists the engineering characteristics and component details found in modern large span steel structure designs.
Characteristic Factor | Technical Description | Component Interactions | Engineering Benefit |
Spatial Structural Stiffness | Three-dimensional stress distribution across interconnected nodes | Welded spherical joints, tubular members | Eliminates localized structural failure risks |
Optimized Mass Ratio | Low dead weight relative to the high load-bearing capacity | High-strength structural steel profiles | Reduces foundation sizing and concrete mass |
Aerodynamic Sensitivity | High responsiveness to wind loads and dynamic air pressure | Wind bracing systems, purlin ties, roof skin | Prevents uplift and limits lateral drift |
Prefabricated Assembly | Modular components designed for bolt-together field assembly | High-strength friction bolts, connection plates | Accelerates installation and minimizes site labor |
The thin profile of a large span steel structure requires careful integration of thermal and acoustic insulation systems. Since steel conducts heat readily, these structures incorporate thermal breaks and insulated sandwich panels to maintain energy efficiency. Engineers specify custom purlin attachments that allow insulation layers to run continuously without compression. This configuration ensures the large span steel structure satisfies strict global building energy regulations while avoiding internal moisture condensation.
Structural expansion under changing temperatures is a vital factor in a large span steel structure. The engineering rule for thermal deformation states that total elongation is determined by multiplying the coefficient of linear expansion of the structural steel by the initial unheated length of the span and the total temperature variation experienced by the framework. For a long-span structure, temperature changes can cause significant movement, requiring engineers to include slotted bolt connections or sliding rocker bearings at the foundation interfaces to allow safe thermal movement without building stress.
Maintenance Protocols for Corrosion Prevention (Operational Tip): To safeguard the structural health of an exposed large span steel structure, operations teams must conduct ultrasonic thickness testing on structural nodes every 24 months. Pay close attention to welded connections and tension rings where moisture can collect. If the dry film thickness (DFT) of the anti-corrosion coating falls below 120 microns, apply a high-solids polyurethane topcoat immediately to prevent oxidation and ensure long-term structural integrity.
The primary advantages of a large span steel structure are its exceptional spatial flexibility, rapid project completion timelines, superb seismic resilience, and outstanding environmental sustainability through material recycling.
The distinct advantages of a large span steel structure make it the preferred option for modern industrial and commercial facilities. By eliminating intermediate columns, a large span steel structure provides an unobstructed interior layout. This clear floor area allows industrial facilities to change production lines easily, maximize warehousing storage space, and operate heavy material handling equipment safely. This spatial freedom is a key reason global logistics firms choose a large span steel structure for their central distribution hubs.
In addition to spatial flexibility, the speed of construction remains a major economic advantage of the large span steel structure. Because the components are prefabricated in a controlled factory setting, field work consists primarily of lifting and bolting elements together. This structural workflow reduces weather-related delays and cuts down onsite labor requirements. Additionally, the inherent flexibility of structural steel gives the large span steel structure excellent performance in earthquake zones. The frame can absorb and dissipate seismic energy through controlled elastic deformation, protecting the overall building from sudden collapse.
For modern projects requiring specialized long-span capabilities, selecting a trusted large span space steel structure guarantees high reliability and long-term performance. These specialized frames are engineered to meet demanding safety standards, ensuring excellent durability even under heavy industrial loads. The table below provides a detailed comparison between a standard large span steel structure and traditional reinforced concrete systems across key engineering metrics.
Performance Metric | Large Span Steel Structure | Reinforced Concrete Structures | Industrial Advantage Ratio |
Clear Span Capability | Exceeds 100 meters without internal column supports | Rarely exceeds 30 meters without heavy prestressing | 3.3:1 Span advantage |
Construction Velocity | Rapid assembly using prefabricated bolted modules | Slow process due to formwork setup and concrete curing | 40% to 50% Time savings |
Seismic Performance | High ductility; absorbs energy through flexible deformation | Brittle behavior; susceptible to cracking under shear stress | Superior safety profile |
End-of-Life Sustainability | 100% Recyclable steel profiles with high scrap value | Demolition leads to high landfill waste and low reuse | Excellent green building rating |
Evaluating the lifecycle costs of a large span steel structure reveals significant long-term savings over traditional concrete builds. Although the initial material cost for high-grade structural steel can be higher, the reduced foundation requirements and faster construction times lead to earlier operational startup dates. This acceleration provides a faster return on investment for commercial developers. Furthermore, the ease of modifying or expanding a large span steel structure ensures the building remains functional as operational needs change over time.
The structural efficiency of a large span steel structure can be analyzed through the material strength-to-weight ratio metric. This parameter is defined by dividing the structural yield strength of the steel grade by the product of the material density and the local gravitational acceleration constant. Because structural steel features an exceptionally high yield strength relative to its density, a large span steel structure requires far less material volume than concrete to support identical design loads, making it the most resource-efficient choice for long-span construction.
Large span steel structures are widely applied in industrial manufacturing facilities, aircraft hangars, international sports complexes, and major transport hubs where expansive open space is mandatory.
Industrial Manufacturing and Automated Warehouses: Modern production facilities require wide, unobstructed spaces to house continuous assembly lines, overhead cranes, and automated storage systems. A large span steel structure fulfills this need perfectly by providing wide column-free spaces that accommodate changing equipment arrangements without structural re-engineering.
Aviation Hangars and Maintenance Facilities: The aviation sector relies heavily on the capabilities of the large span steel structure. Aircraft maintenance hangars require clear spans often exceeding 80 meters to maneuver wide-body commercial planes safely. These structures must also support heavy overhead crane loads and large rolling door systems, demanding high structural stiffness.

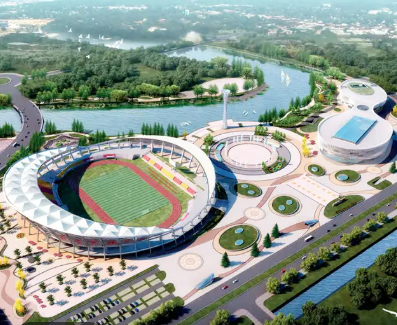

Sports Stadiums and Exhibition Centers: Arenas and convention centers require clear sight lines for thousands of spectators, making intermediate supports impossible. Using a large span steel structure allows architects to design dramatic, long-span roof systems that float over seating bowls, creating safe environments that meet strict international building codes.
To ensure structural performance across these demanding applications, engineering teams consistently rely on specialized large span space steel structure systems. These advanced systems handle complex roof geometries and uneven snow loading, providing the reliable strength needed for signature public and industrial infrastructure projects worldwide.
Application Category | Typical Span Requirements | Primary Engineering Challenge | Structural Selection Priority |
Industrial Warehousing | 30 to 50 meters | Supporting heavy overhead crane runways and dynamic loads | Portal rigid steel frames |
Aviation Hangars | 70 to 120 meters | Managing huge horizontal wind forces on large hangar doors | Space grid structures |
Sports Arenas | 60 to 150 meters | Accommodating complex roof lines and heavy suspended rigging | Cable-stayed or truss networks |
Logistics Hubs | 40 to 80 meters | Providing clear floor space for fast forklift operations | Tubular steel trusses |
In summary, the large span steel structure represents a cornerstone of modern industrial and commercial infrastructure design. By combining high spatial efficiency, rapid factory prefabrication, and excellent seismic safety, these structures provide clear operational advantages over traditional concrete methods. When planning an industrial expansion or a major public facility, selecting a tailored large span steel structure guarantees an adaptable, long-lasting building that meets rigorous performance standards globally. For advanced design requirements, spatial architectures like the space frame format ensure optimal load mitigation and maximum investment return over the structure's full lifecycle.
