What Is a Large Span Steel Structure Building?

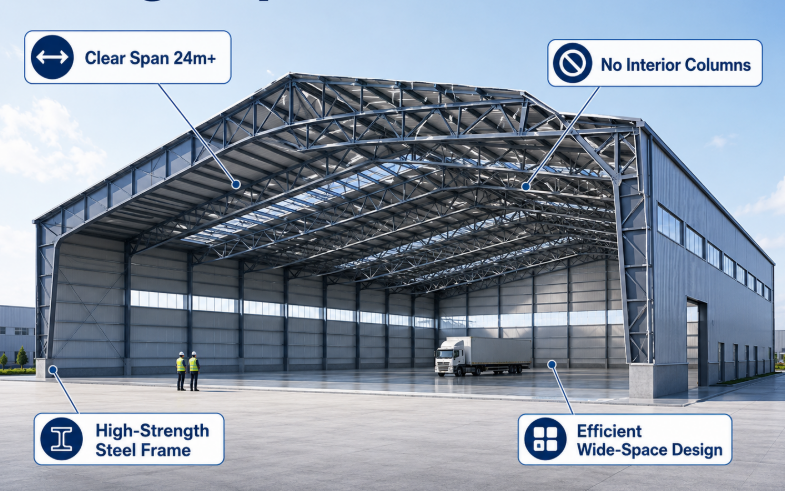

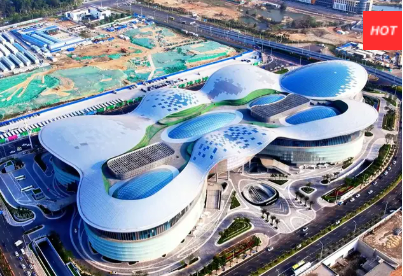

A large span steel structure building is an advanced engineering construction characterized by a clearance span exceeding 24 meters without intermediate column supports, utilizing high-strength structural steel as the primary load-bearing framework. These systems are engineered to cover vast open interior spaces safely and efficiently, distributing colossal structural loads to peripheral supports through optimized mathematical configurations.

At a Glance

What Is a Large Span Structure?

A large span structure is a highly specialized architectural and engineering system designed to bridge massive physical distances, typically exceeding 24 meters, without the support of internal pillars, columns, or vertical bearing elements.

Historically, architectural limitations mandated closely spaced internal columns to prevent the collapse of heavy stone, concrete, or timber roofs. The emergence of modern structural mechanics changed this paradigm. Today, a large span structure represents the pinnacle of structural optimization, where the dead load of the building components and the applied environmental live loads are systematically transferred outwards to peripheral foundations. By eliminating intermediate structural obstacles, these systems provide completely unobstructed interior spaces that maximize operational flexibility and physical capacity.

From a mechanical standpoint, the design of a large span steel structure must account for complex structural forces including bending moments, shear forces, axial tension, and compression. In standard small-span residential construction, bending stress is the dominant limiting factor. However, as the horizontal span of a roof increases, the bending moment increases exponentially. To prevent catastrophic structural deflection or material failure, specialized spatial geometry must be employed. Engineers utilize advanced mathematical models, finite element analysis (FEA), and high-yield structural materials to transform localized bending stresses into distributed axial tension and compression across a continuous three-dimensional system.

These large-scale systems are utilized globally for public, commercial, and industrial facilities. Their design requires strict adherence to international building codes to ensure stability under dynamic loads, seismic events, temperature-induced thermal expansion, and localized wind uplift forces. Consequently, the material composition, welding precision, and structural connections of these systems must meet the highest industrial quality assurance standards.

The Development of Large Span Steel Structure Buildings

The development of large span steel structure buildings traces a highly progressive evolution from heavy masonry arches to high-strength, lightweight, spatial steel systems capable of crossing hundreds of meters with minimal structural weight.

The early history of large-span construction was defined by heavy compressive structures like concrete domes and masonry vaults, such as the Roman Pantheon. While durable, these structures were limited by the low tensile strength of masonry and concrete, resulting in exceptionally heavy dead loads. The industrial revolution introduced cast iron, wrought iron, and eventually structural steel. Steel’s high strength-to-weight ratio revolutionized construction. Engineers could now design structures that carried external loads without collapsing under their own mass, paving the way for the development of modern wide-span architecture.

Throughout the mid-to-late 20th century, structural computational software and advanced metallurgy accelerated the adoption of the modern large span steel structure. The introduction of computer-aided design (CAD) and finite element analysis (FEA) allowed engineers to calculate complex three-dimensional spatial forces with extreme accuracy. Instead of relying solely on heavy parallel steel beams, designers began using spatial structural networks. By distributing forces in multiple directions, these networks significantly reduced material requirements while increasing structural redundancy and safety.

In the modern B2B market, several distinct development trends shape the procurement of these systems:

1. Prefabricated Modular Component Manufacturing: Component fabrication has shifted almost entirely to highly automated off-site facilities. Digital designs are directly integrated with CNC cutting, drilling, and robotic welding equipment to produce structural elements with millimeter-level precision.

2. Advanced Corrosion Protection and Material Science: Modern structures utilize advanced hot-dip galvanization processes and multi-layer organic epoxy coatings. These treatments ensure long-term structural integrity and low maintenance costs in corrosive industrial environments or high-humidity coastal regions.

3. Integration of Environmental and Energy Systems: Large-span roofs are increasingly designed to host large photovoltaic (PV) solar arrays, industrial ventilation units, and integrated rainwater harvesting systems, turning inactive roof space into functional utility zones.

For international buyers seeking robust, long-term industrial assets, utilizing a professional large span space steel structure ensures that the facility meets modern structural codes, boasts optimal thermal insulation, and retains its asset value over decades of operation.

Structural Systems

The selection of a structural system for a large span building is determined by the specific geometric, loading, functional, and aesthetic requirements of the project, with five core engineering topologies dominating the global market.

Each structural topology distributes gravitational and lateral loads through distinct mechanical behaviors. Selecting the correct system is essential to optimize material efficiency, lower transportation costs, and ensure efficient on-site erection.

1. Folded Plates Roof Structure

A folded plates roof structure is a spatial structural system composed of thin, flat plates connected along their longitudinal edges to form a series of V-shaped, W-shaped, or polygonal ridge-and-valley profiles.

The fundamental mechanical advantage of a folded plate structure lies in its geometric stiffness. While a flat steel sheet has low resistance to bending, folding it drastically increases its moment of inertia. This geometry allows the thin plate to act as a deep beam, transferring loads directly along the inclined plate planes to the end supports. The plates experience in-plane longitudinal tension and compression, minimizing local bending and using material highly efficiently.

In industrial steel fabrication, folded plates are typically constructed from high-strength structural steel sheets reinforced with stiffening ribs, or fabricated as pre-assembled modular steel panels. These systems are highly valued in industrial processing facilities because the corrugated underside of the plates provides natural channels for utility runs, lighting fixtures, and industrial ventilation ducts. Additionally, their simple linear geometries make them easier to manufacture and transport than complex curved spatial systems.

2. Reticulated Shell Roof Structure

A reticulated shell roof structure is a curved grid spatial framework that behaves mechanically like a continuous thin shell, combining the high load-bearing capacity of a solid arch with the lightweight efficiency of open-web steel structures.

Reticulated shells are categorized into single-layer configurations, which rely on rigid welded or bolted joints to resist bending, and double-layer configurations, which use two parallel layers of steel members connected by diagonal web members. The double-layer design provides exceptional structural depth and torsional stiffness, making it ideal for spans exceeding 60 meters. These systems transfer external loads to their perimeter supports primarily through in-plane membrane forces (direct axial tension and compression), virtually eliminating massive bending moments.

The nodes, or joints, are the most critical components of a reticulated shell. The most widely accepted connection system is the bolt-sphere joint, which allows multiple structural tubes to intersect at precise spatial angles. This joint system ensures that loads are transferred directly through the center of the sphere, preventing eccentric bending stresses on the structural tubes. For major industrial warehouses and athletic arenas, these systems provide unmatched structural safety, capable of redistributing loads to adjacent members even if localized damage occurs.

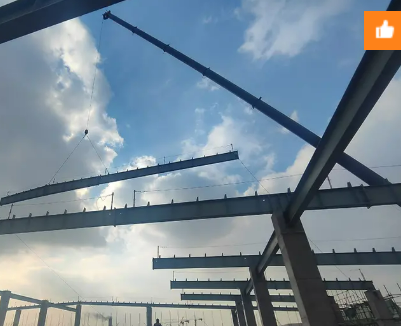

3. Truss Structure

A truss structure is a planar or spatial triangulated framework of structural members pinned or welded at their intersections, designed to convert external transverse loads into direct axial tension and compression within its individual components.

The truss is one of the most reliable and widely used designs in wide-span steel construction. By organizing members into rigid triangles, the system prevents shear distortion and local bending. A typical roof truss consists of:

• Top Chords: Experience high compressive forces under gravity loads.

• Bottom Chords: Experience high tensile forces to resist lateral outward spreading.

• Web Members (Diagonals and Verticals): Transfer shear forces between the top and bottom chords.

For major industrial plants, aviation hangars, and logistics hubs, spatial steel trusses provide excellent flexibility. They can be engineered as flat parallel trusses, pitched triangular trusses, or spatial space trusses depending on the roof's slope and drainage requirements. Their open-web configuration allows electrical conduits, fire suppression lines, HVAC systems, and overhead cranes to pass through the structural depth of the roof, saving valuable vertical space inside the building.

To achieve maximum stability and cost efficiency, procurement teams frequently specify a customized large span space steel structure. These customized configurations optimize the structural steel weight per square meter based on regional wind and snow loads, reducing overall material costs.

4. Membrane Structure Engineering Plastic Film Structure

A membrane structure is an advanced lightweight system that utilizes high-strength, flexible structural fabric or plastic films, held in tension by a steel supporting framework or internal air pressure, to create a protective building envelope.

This system represents a departure from traditional rigid, load-bearing construction. Instead of resisting loads through structural mass and bending stiffness, the membrane relies on tension. The supporting steel framework—composed of curved steel arches, compression rings, or boundary trusses—holds the membrane in high tension, ensuring it remains stable and aerodynamic under external wind and snow loads.

In modern industrial and commercial projects, the primary materials used are:

1. PTFE (Polytetrafluoroethylene) Coated Fiberglass: Known for its extreme durability (30+ years lifespan), natural self-cleaning properties, and exceptional resistance to UV degradation.

2. ETFE (Ethylene Tetrafluoroethylene) Fluoropolymer Film: A highly transparent, extremely lightweight plastic film. It is typically installed as pneumatic multi-layer "cushions" inflated with low-pressure air, providing excellent thermal insulation and high natural light transmission.

3. PVC (Polyvinyl Chloride) Coated Polyester: A highly cost-effective, versatile membrane option used for temporary industrial storage domes, sports enclosures, and logistics facilities.

5. Suspension Cable Structure

A suspension cable structure is a structural system where high-strength steel cables or tension rods serve as the primary load-bearing members, transferring gravity loads to towers, masts, or concrete abutments through tension.

Suspension cable structures are modeled on the same mechanical principles as large suspension bridges. Because steel cables are incredibly efficient in tension, these systems can span distances exceeding 100 meters with very little material. The primary challenge in suspension roof design is wind uplift and flutter, as lightweight roofs can be susceptible to aerodynamic instability.

To counteract wind forces, engineers use dual-cable systems (tensioned against each other) or orthotropic cable networks. The main components of a suspension cable system include:

• Suspension Cables: High-strength steel wire ropes or parallel wire strands that carry the roof load.

• Supporting Towers/Pylons: Massive vertical or inclined compression members that support the cables.

• Anchorage Systems: Heavy gravity foundations or ground anchors designed to resist the immense horizontal pull of the cables.

This structure is highly favored for massive public exhibition centers, transport terminals, and stadiums. It creates dramatic architectural profiles and delivers completely unobstructed interior spaces.

Conclusion

Large span steel structures represent the intersection of advanced computational mechanics, high-performance metallurgy, and modern architectural design, offering the ultimate solution for large, open interior spaces.

By matching the right structural topology—whether a rigid reticulated shell, a versatile steel truss, or a modern tensioned membrane—to the specific operational needs of a facility, project developers can achieve exceptional durability, rapid construction timelines, and excellent material efficiency. Partnering with a specialized manufacturer of large span space steel structure systems ensures that every custom component is engineered, fabricated, and treated to withstand rigorous industrial operations and environmental forces for decades to come.

Operational Maintenance Guidelines: To ensure the long-term structural integrity and safety of a large span steel structure, facility managers should implement a systematic inspection protocol. This includes semi-annual visual inspections of all major welded and bolted connections, using non-destructive testing (NDT) to check critical load-bearing joints for fatigue cracking, and conducting annual torque audits on high-strength structural bolts. Additionally, the protective epoxy coating or hot-dip galvanized finish should be monitored and touched up promptly to prevent corrosion, particularly in high-humidity environments or regions with acidic industrial emissions.
