Large span structures, specifically those utilizing an advanced Large Span Steel Structure framework, offer superior spatial efficiency, structural integrity, and architectural freedom compared to traditional steel buildings by distributing loads triaxially and eliminating the need for intermediate load-bearing columns.
What is a Large Span Structure?
9 Advantages of Large Span Structures
Enhanced Structural Efficiency and Load Performance
Optimized Construction Process and Reduced Material Dependency
Large Span vs Traditional Steel Buildings
Conclusion
A Large Span Steel Structure is an advanced architectural and engineering system designed to bridge vast horizontal distances exceeding 30 meters without the utilization of intermediate columns or internal supporting walls.
In modern industrial and commercial civil engineering, defining structural configurations that maximize unobstructed floor space is paramount. A Large Span Steel Structure represents the pinnacle of this design philosophy. Unlike conventional portal frames that rely on massive, deep-section I-beams to resist bending moments in a single plane, large span engineering utilizes three-dimensional space frames, grid systems, or suspension arrangements. This allows structural loads to be distributed along multiple vectors, transferring dead loads, live loads, and external environmental stresses such as wind and seismic forces evenly across a network of interconnected structural members.
From an engineering perspective, these systems utilize hollow structural sections joined by specialized nodal connectors, such as bolt-ball joints or welded hollow spherical joints. This design reduces bending moments within individual elements, shifting the primary forces to axial tension and compression. Consequently, structural efficiency rises dramatically, allowing the system to achieve immense clear spans while maintaining an exceptionally low self-weight-to-span ratio. This spatial configuration is highly sought after for hangars, logistics hubs, sports arenas, and heavy industrial manufacturing facilities where interior pillars would restrict heavy machinery movement, aircraft storage, or logistical operations.
The design of a large span space steel structure requires sophisticated computer-aided engineering software utilizing Finite Element Analysis to calculate complex stress states, non-linear buckling, and dynamic wind loading patterns. When deploying these advanced systems, structural engineers focus heavily on the joint geometries and member stiffness. These parameters are crucial to ensuring global stability under variable environmental conditions.
Component | Material Specification | Primary Structural Function |
Tubular Chord Members | High-strength carbon steel (e.g., Q355B / Q420B) | Resists axial tension and compression forces along the grid boundaries. |
Diagonal Web Members | Seamless or welded steel tubing | Transfers shear forces between upper and lower chord planes. |
Bolt-Ball Nodes | Forged steel (e.g., No. 45 steel) with high-tensile bolts | Connects multiple structural members in three dimensions, acting as a pin-jointed node. |
Support Pedestals | Cast steel or welded plate assembly | Transfers reactions from the space frame down to the concrete substructure. |
Implementing a Large Span Steel Structure delivers unmatched spatial versatility, enhanced material efficiency, and superior structural resilience that traditional steel buildings cannot replicate.
The primary advantage of a Large Span Steel Structure is its ability to create expansive, completely column-free interior environments. In heavy manufacturing, aviation, and warehousing, intermediate columns pose significant physical blockages. Removing these structural impediments allows for the unrestricted movement of overhead gantry cranes, massive assembly lines, transport vehicles, and aircraft, drastically optimizing operational logistics.
By distributing mechanical forces across a triaxial grid network, a Large Span Steel Structure achieves a far more favorable dead-weight-to-span ratio than a standard steel building. The use of hollow structural steel sections minimizes the amount of raw steel required to support the dead load of the roof cladding. This optimization reduces the overall gravity load exerted on the supporting columns and foundations.
Because space frame structures distribute external loads dynamically in three dimensions, they exhibit exceptional structural redundancy. If an individual member experiences localized failure or deformation during a seismic event or high-wind hurricane, the adjacent members automatically redistribute the stress. This redundancy prevents progressive collapse and makes the system highly resilient against extreme dynamic forces.
The reduced dead weight of a large span space steel structure translates directly to lower vertical loading on the substructure. Consequently, the concrete foundations, footings, and pilings can be designed with reduced dimensions and reinforcement densities. This yields major cost savings, particularly in areas with poor soil bearing capacities where deep piling would otherwise be required.
All components of a Large Span Steel Structure, including the precision-machined bolt-ball joints and cut-to-length tubular members, are manufactured under strict quality control conditions in a factory setting. This high degree of prefabrication minimizes the risk of human error during fabrication, ensures tight dimensional tolerances, and dramatically reduces on-site welding requirements.
Due to the modular nature of space frame components, the on-site assembly process is streamlined and highly efficient. Individual modules can be pre-assembled on the ground and then hoisted into position using heavy-duty mobile cranes. This simultaneous ground assembly and lifting sequence significantly compresses the project schedule compared to the sequential erection of heavy, traditional structural steel elements.
Unlike traditional portal steel frames, which are largely restricted to simple gable or monoslope geometries, large span space structures can be engineered into complex curves, domes, vaults, and hyperbolic paraboloids. This geometric adaptability allows architects to design iconic structures that fulfill both aesthetic and functional criteria without compromising structural safety.
While the initial engineering and design phases of a Large Span Steel Structure require highly specialized software and skilled engineers, the long-term life-cycle cost is significantly lower than that of conventional buildings. The reduced material mass, lower maintenance requirements of spherical nodes, and long-lasting anti-corrosion coatings ensure that the structure remains highly cost-effective over its entire operational lifetime.
Steel is a highly recyclable material, and the optimized design of a Large Span Steel Structure ensures that minimal raw material is wasted during both production and construction. Furthermore, because these structures are assembled using bolted connections rather than extensive field welds, they can be systematically disassembled, repurposed, or recycled at the end of their design life, aligning with modern circular economy principles.
Design Attribute | Large Span Space Frame | Traditional Portal Frame |
Maximum Feasible Span | Over 120 meters | Typically limited to 30 to 45 meters |
Material Distribution | Three-dimensional spatial distribution | Two-dimensional planar distribution |
Primary Stress Type | Pure axial tension and compression | High bending moments and shear stresses |
Internal Columns | Completely eliminated | Often required for wide-span layouts |
A Large Span Steel Structure utilizes advanced spatial mechanics to achieve unmatched load distribution efficiency, allowing it to withstand extreme dead, live, wind, and seismic loads with minimal deflection.
To understand the mechanical superiority of a Large Span Steel Structure, one must analyze how forces travel through the system. In traditional steel buildings, loads applied to the roof are transferred to purlins, which transfer them to planar rafters, then to columns, and finally to the foundation. This creates highly concentrated bending moments within the rafters and columns, requiring deep, heavy I-beams to prevent structural failure. In contrast, a large-span space frame operates as a three-dimensional pin-jointed truss system. When a localized load (such as a heavy HVAC unit or localized snow accumulation) is applied to a single node, the forces are immediately distributed radially through the upper and lower chord members and diagonal web elements. This multi-directional load path significantly reduces peak bending moments, converting them instead into low-intensity axial forces.
Mathematically, the stiffness of these systems is determined by their depth-to-span ratio. By adjusting the depth of the space frame grid, engineers can control the overall deflection of the roof structure under serviceability limit states. The deflection criteria for these large-span systems are strictly governed by international design codes, such as Eurocode 3 or AISC standards, which typically enforce a maximum deflection of $L/300$ to $L/400$, where $L$ is the span length. Achieving these deflection limits with conventional solid-web steel beams would require massive cross-sections, which would dramatically increase the building's self-weight and require extensive foundation reinforcement.
Additionally, the aerodynamic characteristics of large-span curved roofs, such as barrel vaults or domes, significantly reduce the wind lift coefficients compared to flat or steeply pitched traditional roofs. Wind forces flowing over a curved, large span space steel structure experience less resistance, generating lower drag and uplift forces. This structural geometry is highly favored by European and international clients who must comply with strict wind loading regulations in coastal or high-altitude regions.
Loading Type | Space Frame Mechanics | Conventional Steel Mechanics |
Gravity (Dead/Live) | Uniformly shared across all grid coordinates, preventing localized stress concentrations. | Generates massive bending moments at mid-span and connection points. |
Wind Uplift | Aerodynamic surfaces minimize suction forces; stress is resolved via axial tension in lower chords. | Induces significant lateral forces and twisting moments in primary frames. |
Seismic Force | High structural redundancy allows alternative load paths if individual members yield. | High structural mass increases inertial forces, raising the risk of localized failure. |
The highly modular design of a Large Span Steel Structure drastically simplifies logistical supply chains and speeds up on-site construction by using lightweight, standardized components.
When analyzing the construction lifecycle of major industrial infrastructure, on-site labor hours, heavy machinery rentals, and material logistics represent the largest cost drivers. Traditional steel buildings require the transportation of massive, non-standard structural steel members, often demanding specialized transport permits, heavy-duty escort vehicles, and ultra-high-capacity cranes for on-site erection. A Large Span Steel Structure completely reframes this logistics model. Because the system is comprised of standardized tubular members and spherical joints, the individual components are relatively compact and lightweight. They can be densely packed into standard shipping containers, dramatically reducing overland and maritime freight costs, which is highly beneficial for global export projects.
On-site, the construction methodology is highly adaptable, offering distinct advantages over traditional steel buildings:

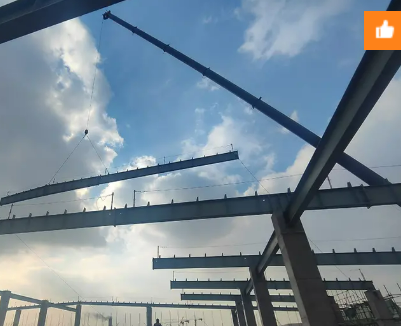

Ground Assembly and Overall Hoisting: In this method, the entire space frame grid, or large sub-assemblies of it, is joined together on the ground. This allows workers to complete assembly at ground level, reducing safety risks associated with working at heights. Once assembled, the entire roof structure is hoisted into place using multiple synchronized cranes or hydraulic strand jacks.
Cantilever Erection: This technique is particularly valuable in projects where ground-level access is restricted or when working over existing equipment. The structure is built outward from the support columns, with each new grid module acting as a temporary cantilever until the next support is reached.
Sliding Method: For ultra-long structures, individual sections of the space frame can be assembled on a platform at one end of the site and then slid along longitudinal tracks to their final positions, minimizing the need for scaffolding.
These advanced construction methods dramatically shorten the critical path of the project schedule, allowing fast-track facility completion and faster return on investment for the developer.
Maintenance and Inspection Protocol: To guarantee the design life of a large span space system, facility managers must implement a biannual maintenance schedule focusing on the tightness of high-strength bolted connections, the integrity of the anti-corrosion hot-dip galvanized coatings, and the monitoring of structural settlement at support pedestals.

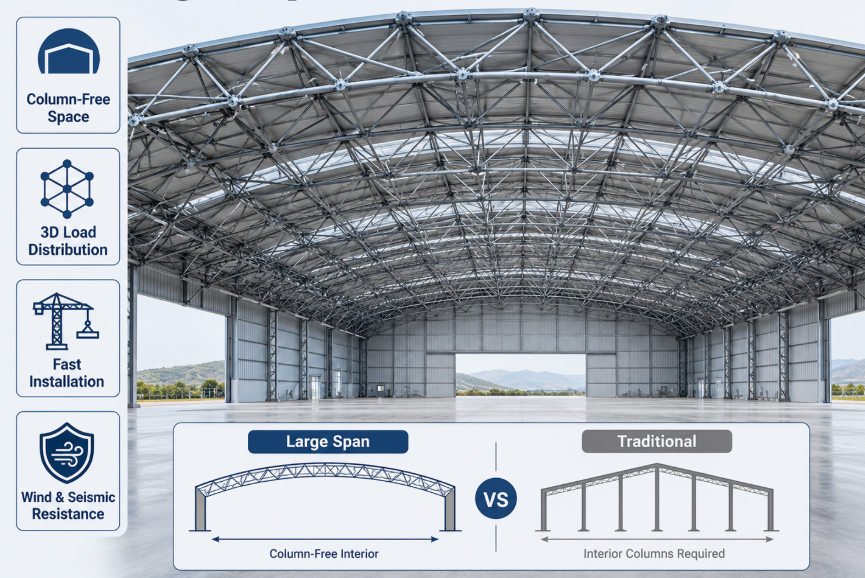

A comparative analysis reveals that while traditional steel buildings are suitable for basic, small-scale structures, they fall short of a Large Span Steel Structure in terms of spatial utility, foundation economy, and long-term layout adaptability.
When deciding between these two construction methodologies, project owners must evaluate the total cost of ownership rather than just the initial raw material cost. Standard portal frame steel buildings rely on a series of planar frames repeated at regular intervals (typically 6 to 9 meters). This setup is highly effective for narrow warehouses or standard retail outlets. However, when the required span exceeds 30 meters, the depth of the rafters must increase exponentially to resist bending stresses, which reduces the building's usable interior height. To avoid this, designers of traditional steel buildings often introduce internal support columns, which permanently restrict the internal layout of the building and prevent future reconfigurations.
In contrast, a large span space steel structure provides complete spatial freedom. If a manufacturing plant needs to update its process flow or install larger machinery ten years after construction, the column-free interior makes these modifications straightforward and inexpensive. Furthermore, European clients, who prioritize strict energy-efficiency ratings and low carbon footprints, frequently choose space frame systems because their lightweight designs require less overall steel tonnage. This translates directly to lower embodied carbon emissions during manufacturing and transportation.
Evaluation Parameter | Large Span Space Structure | Traditional Steel Building |
Interior Space Utility | 100% unobstructed, column-free layout | Restricted by internal columns at wide spans |
Steel Consumption | High efficiency, low steel consumption per square meter | Heavy structural steel members required |
Foundation Design Load | Minimal vertical and horizontal forces | Heavy vertical loads requiring deep pile foundations |
Architectural Aesthetic | Curved, vaulted, or complex spatial geometries | Standard rectilinear gable or monoslope shapes |
Expansion Adaptability | Highly adaptable; interior layouts can be fully reconfigured | Limited flexibility due to fixed structural columns |
Corrosion Resistance | High; utilizes advanced hot-dip galvanization on all components | Standard primer coats; vulnerable to localized rust |
For modern industrial, commercial, and aviation projects, investing in a Large Span Steel Structure is the most effective way to maximize spatial efficiency, ensure high structural safety, and lower lifetime maintenance costs.
Ultimately, the choice between a Large Span Steel Structure and a traditional steel building comes down to balancing spatial requirements, structural performance, and overall project value. While standard steel buildings remain a functional option for simple, narrow structures with low load demands, they struggle to scale efficiently when faced with wide, column-free designs. Their reliance on heavy, planar steel sections leads to higher material consumption, more expensive foundations, and permanent restrictions on interior layouts.
In contrast, large span systems utilize advanced three-dimensional space frame engineering to distribute loads evenly, minimize steel tonnage, and eliminate interior columns entirely. This makes them highly effective for major logistics hubs, heavy industrial manufacturing plants, and sports arenas. By reducing structural weight, accelerating on-site installation, and offering exceptional resistance to extreme wind and seismic forces, the large span space steel structure is the clear choice for developers looking to build resilient, highly adaptable, and future-proof facilities.
