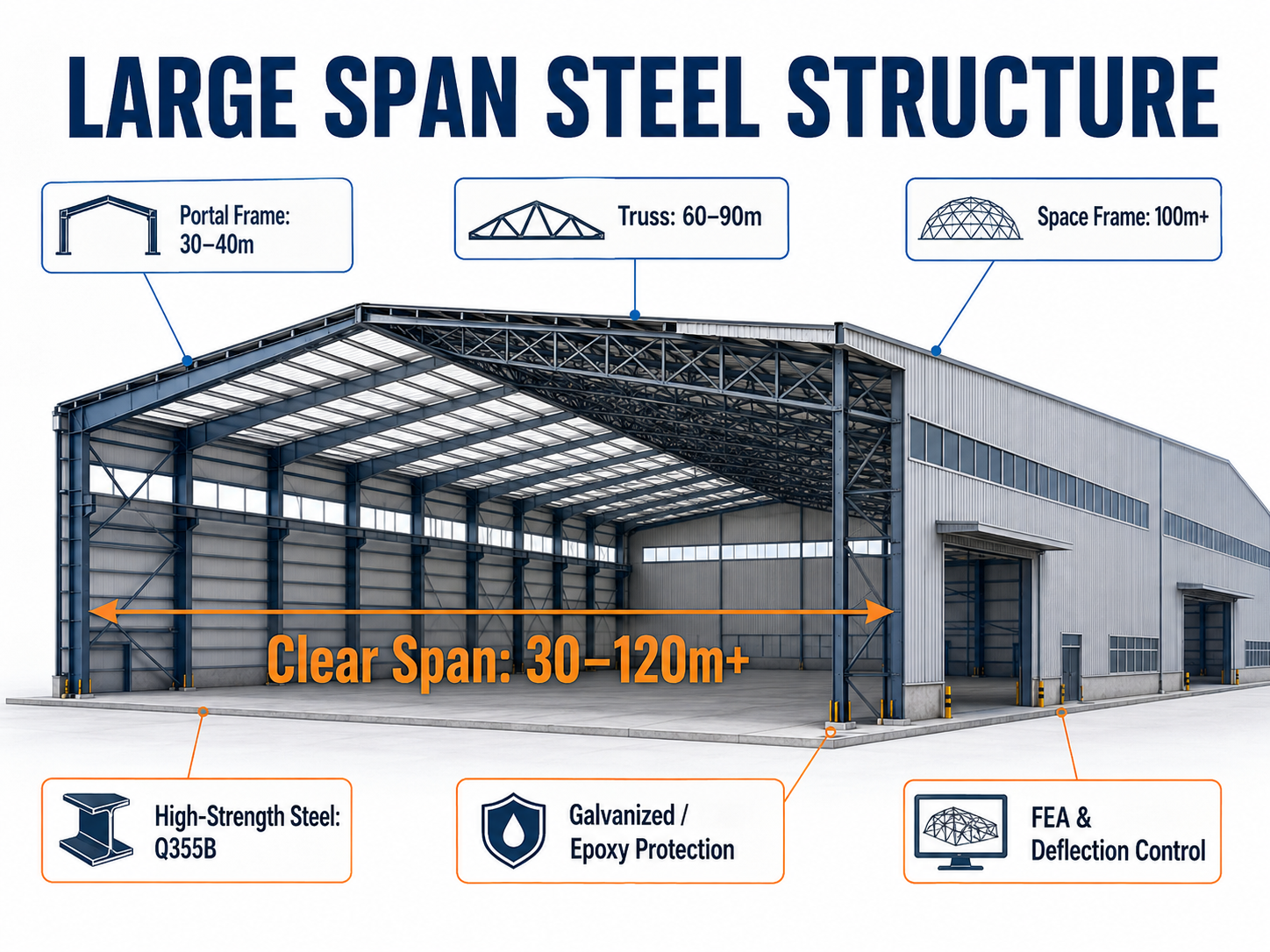

The maximum span of a large span steel structure warehouse generally ranges from 30 to 60 meters for standard portal frame designs, but it can reach up to 120 meters or even exceed 200 meters when utilizing advanced space frame, truss, or dome systems without intermediate column supports.
Section | Summary |
Factors Influencing the Maximum Span | Analyzes the fundamental drivers behind span limits, focusing on structural engineering models, material yield strengths, and external load factors. |
Current Achievable Spans | Evaluates the practical limits across different structural classifications, including portal frames, trusses, and space frames. |
Optimized Steel Material Specifications | Outlines technical grades, mechanical properties, and dimensional configurations of structural steel components. |
Structural Design Methods | Explains the scientific design procedures, including FEA testing, deflection ratios, and structural safety coefficients. |
The fundamental structural system selected for a warehouse is the primary determinant of its maximum span capability. In industrial applications, designers typically choose between traditional portal frames, planar truss systems, and advanced three-dimensional space frames. Traditional portal frames are highly efficient but become structurally inefficient at spans exceeding 40 meters due to massive bending moments at the eave joints. Truss structures, consisting of triangular units, utilize axial forces rather than bending moments, which drastically increases material efficiency and extends span capabilities to over 60 meters. For the most demanding applications requiring completely unobstructed interiors, space frames distribute loads in three dimensions, allowing for spans that can easily exceed 100 meters without mid-span columns. To achieve these extreme distances, industrial developers often integrate high-precision engineered solutions such as the Large Span Space Steel Structure to maintain geometric stability under heavy self-weight.
The physical and mechanical properties of the steel material set absolute thermodynamic and mechanical boundaries on structural performance. High-strength steel grades such as Q355B, Q420B, or ASTM A572 Grade 50 allow structural elements to resist larger bending moments, shear forces, and axial tensions without requiring thicker profiles that add dead weight. The strength-to-weight ratio is the decisive variable; as the span increases, the self-weight of the steel structure itself becomes the dominant load. If standard-strength steel is used, the dead load of the trusses increases exponentially, eventually leading to structural self-collapse. By utilizing high-yield materials with superior elasticity and tensile properties, structural engineers can decrease the cross-sectional area of tension members and top-chord compression elements, ensuring that the maximum span can be extended safely.
Every large span warehouse must be engineered to withstand a complex combination of dead loads, live loads, and environmental actions. Environmental forces include regional wind loads, seismic coefficients, and heavy snow loads. When the span of a roof structure increases, the surface area exposed to wind uplift and snow accumulation expands proportionally. In coastal or high-latitude regions, wind suction and snow drift accumulation impose massive eccentric forces on the main support columns. Additionally, the inclusion of overhead traveling cranes or heavy mechanical systems suspended from the roof trusses introduces dynamic fatigue loads that must be accounted for in joint designs. To balance these variables, engineered solutions must integrate strict wind-resistant cladding and optimized purlin spacing to safely transfer loads to the foundations.
In contemporary industrial architecture, maximum spans are classified based on the structural configuration and engineering methods applied. The table below outlines the standard limits achieved in modern construction:
Structural Classification | Common Span Range (in meters) | Maximum Achievable Span (in meters) | Typical Application |
Light Portal Frame | 15 to 30 | 40 | Standard logistics, light manufacturing workshops |
Heavy Tubular Truss | 30 to 60 | 90 | Aircraft hangars, heavy industrial machinery storage |
Space Frame Grid | 60 to 120 | 150 and above | Bulk material storage, coal sheds, mega-logistics hubs |
Cable-Suspended Steel Dome | 80 to 150 | 200 and above | Specialized sports arenas, ultra-large specialized storage |
Standard portal frames represent the majority of commercial warehouse designs. For most logistical operations, a span of 30 to 45 meters balances construction cost, structural safety, and interior flexibility. When spans exceed 60 meters, the cost curve rises sharply due to the necessity of specialized cranes for erection, thicker steel plates, and complex welding inspection protocols.
For mega-scale structures, such as bulk storage facilities or aviation hangars, space frame grids and pipe trusses are the industry standard. These systems distribute load evenly through three-dimensional space, preventing localized failures. To achieve high structural efficiency, systems like the Large Span Space Steel Structure utilize bolted spherical joints and hollow steel tubes to minimize self-weight while maintaining high torsional rigidity.
To understand how these massive spans are structurally feasible, it is necessary to examine the physical specifications of the raw materials and structural components utilized.
Component | Standard Material Grade | Minimum Yield Strength | Ultimate Tensile Strength | Protective Surface Treatment |
Primary Column / Truss | Q355B / ASTM A572 Gr 50 | 355 Megapascals | 470 to 630 Megapascals | Hot-dip galvanized or epoxy painted |
High-Strength Bolts | Grade 10.9S / ASTM A490 | 940 Megapascals | 1040 Megapascals | Dacromet coating / phosphate treatment |
Secondary Purlins | Q235B / Cold-formed Z or C | 235 Megapascals | 375 to 500 Megapascals | Pre-galvanized coating |
Roofing / Cladding | Aluzinc Steel (G550) | 550 Megapascals | 570 Megapascals | PVDF coating |
Using high-grade structural elements is a prerequisite for achieving extreme spans. The main framework relies on thick-walled structural steel tubes or built-up H-beams. These elements are manufactured under rigorous factory conditions to ensure weld integrity and chemical consistency. High-strength bolts are used to splice structural segments together on-site, providing slip-resistant connections that transfer huge bending moments between sections of the Large Span Space Steel Structure.
Because wide span structures lack interior columns, any corrosion on the primary structural members could jeopardize the entire facility. Therefore, hot-dip galvanizing or multi-layer epoxy coating systems are mandatory. European and North American clients heavily favor thick hot-dip galvanized finishes for corrosive environments, ensuring a maintenance-free lifespan of over 50 years.
The creation of safe, high-performing large-span structures relies entirely on advanced computational modeling. Engineers use Finite Element Analysis (FEA) software to simulate realistic load paths and identify areas of high stress concentration.
During the modeling phase, various load combinations—including wind suction, localized heavy snow accumulation, and temperature gradients—are applied. For spans exceeding 60 meters, the thermal expansion and contraction of the steel become major design considerations, requiring the placement of slotted expansion joints or Teflon slide bearings at the column bases.
In addition to ultimate limit state criteria, serviceability limit states dictate the design of large spans. The maximum allowable vertical deflection under live load is typically limited by engineering standards to a small fraction of the total span length. For a 60-meter span, this allows for a maximum mid-span deflection of 240 millimeters. To prevent visible sagging and potential water pooling on the roof, the trusses are pre-cambered during manufacturing. This involves curving the truss slightly upward during production so that it flattens to the correct horizontal plane when subjected to dead loads.
When implementing the Large Span Space Steel Structure, designers must pay careful attention to the torsional stability of the compression chords. Buckling is the primary failure mode of long-span structures, making lateral bracing systems crucial for ensuring the structure behaves as a rigid, integrated unit.
The maximum span of a large span steel structure warehouse is not a fixed number, but rather a variable determined by structural engineering choices, material chemistry, and local environmental loads. While standard industrial portal frames operate highly efficiently up to 40 meters, the application of space frames, trusses, and specialized structural designs allows developers to achieve unobstructed spans exceeding 100 to 120 meters. By utilizing high-strength steel grades like Q355B, applying rigorous finite element analysis, and incorporating advanced manufacturing techniques, modern steel warehouses provide the high clearances and column-free spaces required for large logistics, heavy industry, and aviation projects worldwide.
Important Maintenance Tip (Pre-tensioned Joint Inspection): For all large-span structures utilizing bolted joints, it is critical to perform ultrasonic non-destructive testing on high-strength bolts and key truss welds every 3 to 5 years. Over time, dynamic wind loads and temperature fluctuations can cause pre-tension losses in high-strength bolts, which must be monitored and retorqued to their specified design tension to prevent localized structural failures.
